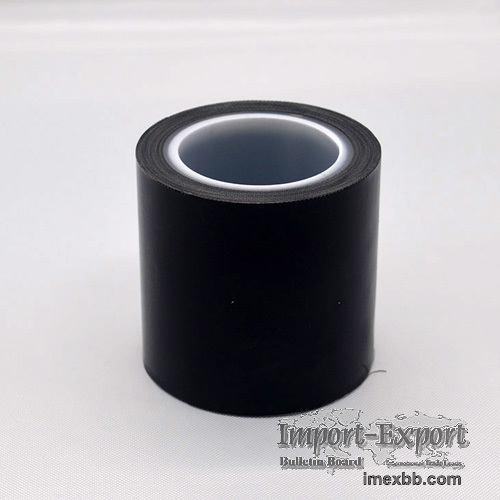

PTFE Adhesive Tape

Mutiflon provides heat-resistant Teflon tape with silicone adhesive which
resist 260℃ and acrylic adhesive which withstand 170℃ on one side or both
sides. Our PTFE coated fabrics are available in thickness from 0.04 mm-1.2 mm,
max width reach 2600 mm, temperature resistance up to 360℃.

PTFE adhesive tape is structured by PTFE coated glass cloth applied with
pressure-sensitive silicone adhesive on one side, main features of PTFE
adhesive tape is excellent release surface, high-temperature resistance up to
260°C( 500°F) and strong adhesion under high heat.

The PTFE coating we use is imported from Japan which provides a quick release,
abrasion-resistant and smooth surface. The basic material is woven fiberglass
fabric which makes the tape tear-resistant. Pressure-sensitive adhesive is
imported from the USA which has relatively lower initial adhesion but higher
adhesion under high heat, the adhesive teflon sheet will not residual on the
machine when peeling off.

PTFE adhesive tape(PTFE adhesive-backed tape) can be with or without yellow
release paper on the back, normally jumbo roll like 1m x 50m and 1m x 30m are
with liner on the back, small rolls like 25mm x 10m, 50mm x 10m may with or
without the liner.

MUTIFLON is one of the professional teflon adhesive tape manufacturers, our
products include all types of PTFE coated glass cloth adhesive tape.

PTFE Adhesive Tape Details

Application of ptfe adhesive sheet is as work surface covers of hot sealing for
plastic films, hot pressing during laminating and composite mold release. Such
as for impulse sealer, drop sealer, form and fill sealer, L bar sealer, Side
sealer, blister packing, vacuum packing, polybag manufacturing and hot
laminating.

The standard width of PTFE teflon adhesive tape is 1000mm and 1250mm, small
sizes can be slit accordingly.

Item Code Color Adhesive Type Fabric Thickness (mm) Total Thickness
(mm) Adhesion
(N/cm) Temperature
(°C )
MT7008 Brown/Black/White/Blue/Green Silicone 0.08mm 0.13mm 4.4
-70 ~ +260
MT7011 Brown/White/Blue/Green Silicone 0.11mm 0.16mm 5.4 -70 ~
+260
MT7013 Brown/White/Blue/Green Silicone 0.13mm 0.18mm 5.4 -70 ~
+260
MT7015 Brown/Black/White/Blue/Green Silicone 0.15mm 0.20mm 5.6
-70 ~ +260
MT7018 Brown/Black/White/Blue/Green Silicone 0.18mm 0.23mm 5.6
-70 ~ +260
MT7020 Brown/Black/White/Blue/Green Silicone 0.20mm 0.25mm 5.7
-70 ~ +260
MT7025 Brown/Black/White/Blue/Green Silicone 0.25mm 0.30mm 6
-70 ~ +260
MT7030 Brown Silicone 0.30mm 0.35mm 6.2 -70 ~ +260

Minimum Order: 10 square metres
