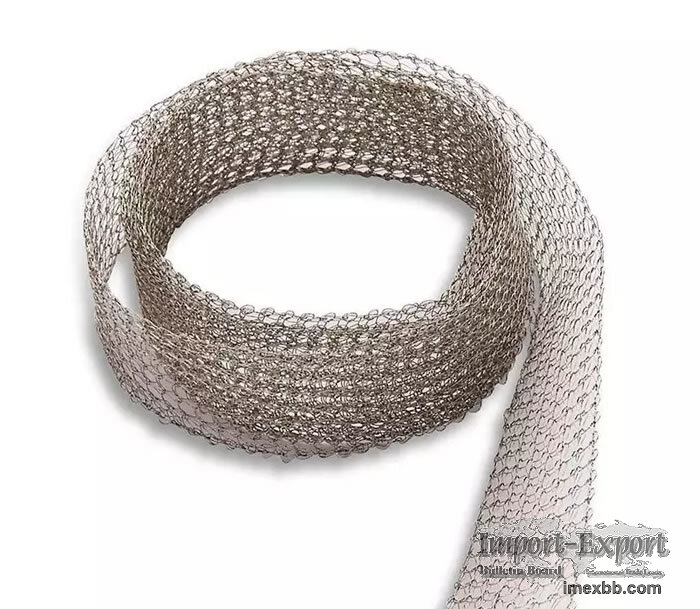

PTFE Knitted Wire Mesh

PTFE (POLYETHYLENE) KNITTED WIRE MESH FOR FILTER DEVICES
Non-metallic filter wire mesh is popularly knit woven by PTFE polyethylene or
PP. We supply PTFE knitted mesh to Australia, Portugal and other countries.


Application
Knitted PTFE mesh fabrics are mainly used for gas and liquid filter.
Work temperature: -200~+250
Features: Good anti-corrosion: Good acid resistance, alkali resistance, etc.


Material:
Mixed fabric, fibre wire, PTFE wire mesh, PP, PC, PE, etc.
Range:0.10mm-0.55mm (common wire through is: 0.20mm - 0.25mm).
Hole Size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer
requirements on the hole size fine-tuning. The cutout form of the large hole
and the orifice cross-arranged (the size of the holes in the longitudinal
direction is the same,width is different).
The surface condition of knitted mesh: Flat-type mesh surface and pressed into
a corrugated bellows-type network surface (the width of the corrugations and
the depth of the different specifications.
The Common Width of knitted mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm,
400mm, 500mm, 600mm, etc.

PTFE mesh is mainly used for processing demister for separation of the gas
inside the droplets. Can also be extrusion molding for manufacturing a
filtration device.
