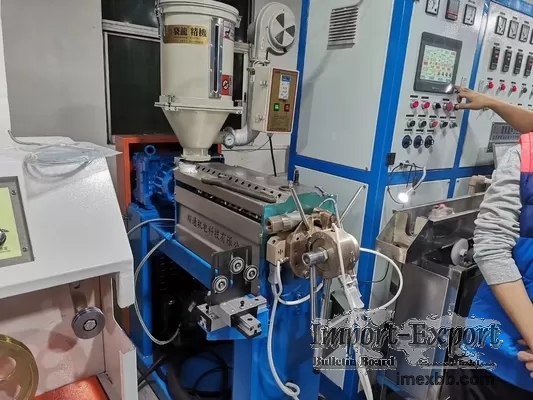

PTFE Wire And Cable Extruder Machine 60kg/H 11KW With Siemens Motor

Product Description
PTFE Wire And Cable Outer Sheath 35mm Extruder Machine Production Line With
HC-276 Hastelloy Alloy Steel Barrel ,

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we
also produce copper buncher, cable twisting machine, copper drawing
machine.Until now we have exported some production lines to Pakistan,
iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are
still working on other country,

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF

Characteristics:
It is suitable for the production of fluoroplastics such as FEP
(polyfluoroethylene propylene, also known as F46), FPA (oxidized
alkoxyethylene resin) and ESFE (also known as F40).

Screw barrel: all adopt the new No. 3 steel GH113 (same as American GDA
material) for corrosion resistance and high temperature resistance or
imported Hastelloy gold steel.

Machine head: special non-adjustable machine head or adjustable machine head
made of new No. 3 gold steel GH113 or Microdia machine head and vacuum
device imported from Switzerland.

Heating system: high temperature resistant cast copper alloy heater is used.

Quality control: Equipped with external diameter detection feedback device,
Japanese TAKIKAWA concave-convex tester to control the outer diameter of the
product in the whole process, British BETA water capacitance tester, high-
frequency spark machine and concentricity and other process parameters.

Product Parameters
Machine model NHF-20 NHF-25 NHF-30
Applicable cable Coaxial cable Coaxial cable RGB178
Inlet diameter 0.025/7 0.03/7 0.86
Finished diameter 0.2 0.25 1.08
production capacity 50MPM 80MPM 300MPM
Dimensions 10*1*2m 12*1.2*2m 16*1.5*2.5m
Power 15KW 20KW 25KW
Electronic control Controlled inverter + PLC entire control(may choose
the use)

Click to Enlarge
