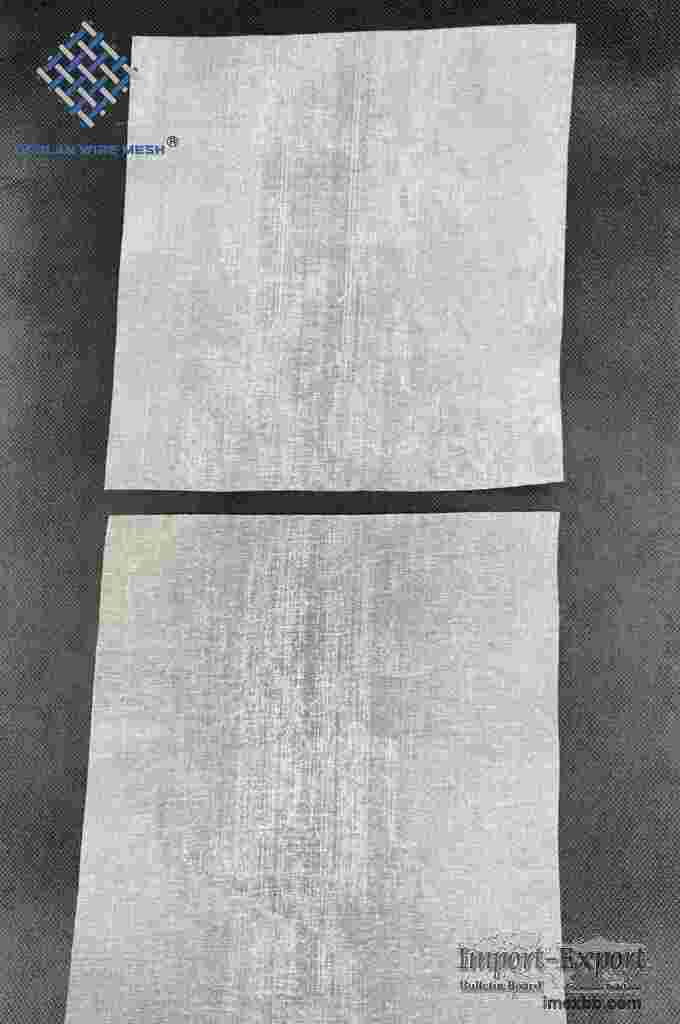

Pure Platinum Mesh

Product Name Pure Platinum Mesh
Model Platinum Pt≥99.99%
Mesh Size 0.5-100Mesh 0.3X0.5mm 1X2mm 2X3mm 3X6mm 4X8mm 5X10mm
Wire Diameter Thickness 2.0mm-0.05mm
Weaving Method Plain Weave, Twill Weave, Mat Weave Diamond Shaped Hole,
Circular Hole, Square Hole
Density 21.45 g/cm3
Melting Point 1772 ℃
Characteristic
Pure platinum wire mesh is silvery white, with excellent ductility, thermal and
electrical conductivity. It features high melting point, oxidation resistance and
stable chemical properties, meeting GB/T5799-98 standards. It also boasts high
thermoelectric potential, good linear relationship between thermocouple alloy
temperature and thermoelectric potential, high stability, uniformity and oxidation
resistance.

It performs well in flame color reaction without impurity interference. In the
experiment of ammonia catalytic oxidation for nitric acid production, red-hot
platinum wire mesh enables the reaction of ammonia-air mixture to generate reddish-
brown nitrogen dioxide, while remaining red-hot itself.
Application
(1) For ammonia oxidation to synthesize platinum nitrate
(2) Manufacture of jewelry, wires, lab containers, corrosion-resistant equipment,
dental materials
(3) Production of platinum resistance thermometers, S/R-type thermocouples, standard
electrodes/instruments, precision alloys, chemical industry applications
(4) Catalyst, oxidant, gas absorbent
(5) High-temperature test carrier in chemical/pharmaceutical/cement/research labs
for ≥1400°C experiments; features high heat resistance & long service life
(6) Battery collector/electrode/skeleton mesh, experimental materials, high-
precision filtration, military/aerospace applications
Oufulang Rare and Precious Alloy Wire Mesh Company offers 99.99% pure electrode
platinum wire mesh (white gold mesh) with uniform surface, no broken wires or
loopholes. It features good ductility, ultra-high conductivity and heat transfer,
widely used in nitrate catalysis, battery electrode current collectors, thermocouple
instruments, aerospace, military nuclear reactors, rocket missiles, vacuum high-
temperature equipment, petrochemicals, pharmaceuticals, mechanical manufacturing,
etc.

In-stock specs: 10, 20, 30, 50, 100 mesh. Year-round stock meets small-batch
experimental orders and large industrial urgent needs, saving custom costs and time.
Special specs can be customized per drawings.
