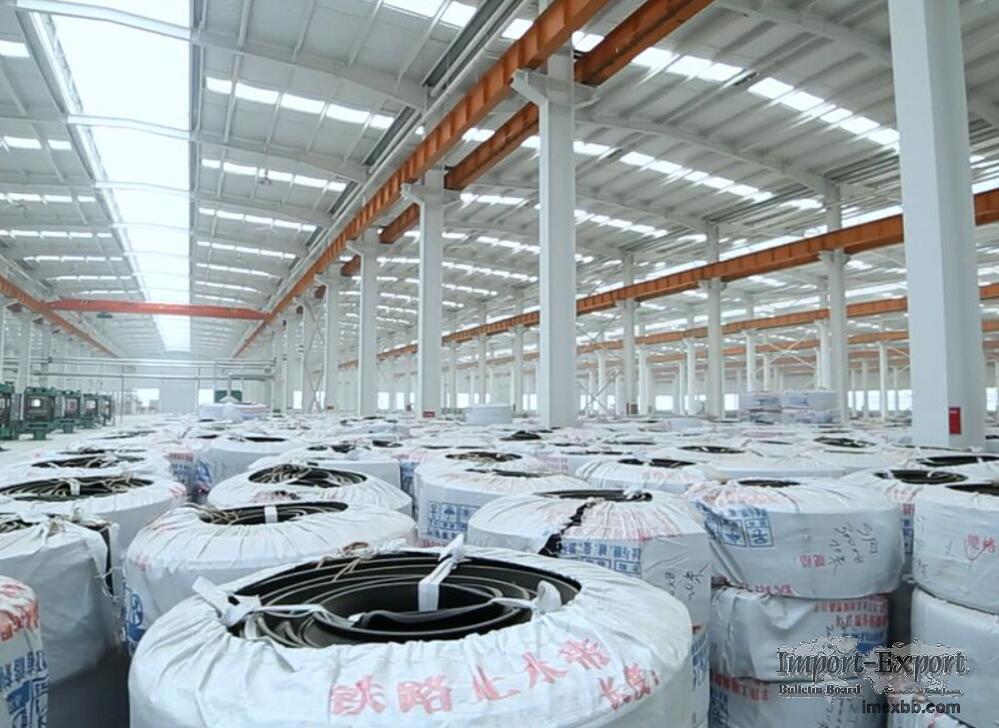

PVC Waterstop

Pvc waterstop is designed to provided an overall sealing system for the
movable joints and construction joints in cast-in-place concrete. such
joints usually exist in the following types of buildings.
Water storage building:
Reservoirs, water towers and sewage towers
Dams, culverts, canals and spillways
The swimming pool
The berm area around the storage tank
Waterproof building:
Basement and underground parking
Tunnels and underpasses
Abutment and retaining walls
Roof deck and podium area
Functional principle of pvc waterstop:
1. Dumbbell shaped waterstop is poured through concrete and embedded in the
edge of adjacent concrete, and the concrete slab acts as a baffle. When the
joint is opened due to dry shrinkage or other displacement, the edge bulge
on the section of the waterstop will play an anchoring role. Therefore, the
transverse tension of the waterstop will produce a sealing effect on the
inner surface of the edge bulge.
2. After the section of the waterstop becomes complex, its surface area will
be greatly increased, which will have a greater organizational effect on the
water leakage of the waterstop section, and the complex path formed on the
section will make it difficult for water to pass through.
