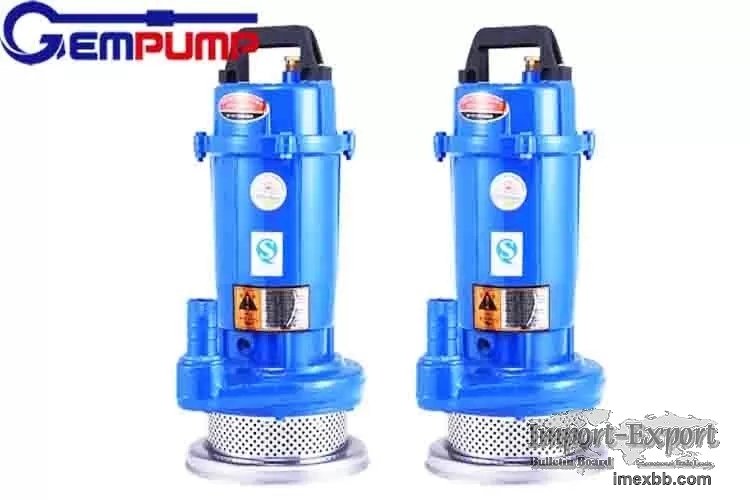

QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch

QDX pump are with high quality of aluminum or cast iron material. They are
widely used for drainage or water supply from shallow borehole, river and etc.
Good performence of flow rate and head of pump. Full of series from 0.37kw to
11kw can meet domestic pumps' and indutrial pumps' requirments. High quality
and competitive price help us to win good reputation from our customers.

QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch 0

QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch 1

QDX Submersible Clear Water Pump
Max. immersion depth: 5m
Max. liquid temperature: +40ºC
Fluid temperature up to: +35ºC
Cast iron pump body
Aluminum impeller
Double-sealing structure

QDX Submersible Clear Water Pump Motor
Copper winding
Single-phase / continuous work
Motor housing: Aluminum
Built-in thermal protector
Shaft: Stainless steel welded shaft / 45# steel be electroplated
Insulation class: B or F
Protection class: IPX8
Adopts oil-filled type structure

PUMP INSTALLATION AND APPLICATIONS
Small submersible pumps are consisted with pump, seal and motor.
This serie is used two sets of high quality mechanical seal, which is good
sealing property, and good waterprof structure.
These pumps are the new product with well-designed, novel and attractive
appearance.

MODEL POWER FLOW
(m³/h) Head
(m) OUTLET
(in) G.W.
(kg) PACKING
DIMENSION
(MM)
kW HP
QDX1.5-16-0.37(Y) 0.37 0.5 1.5 16 1" 9
400X220X190
QDX3-20-0.55(Y) 0.55 0.75 3 20 1" 12 430X205X200
QDX10-10-0.55(Y) 0.55 0.75 10 10 2" 12
430X205X200
QDX1.5-32-0.75(Y) 0.75 1.0 1.5 32 1" 14.5
440X260X240
QDX10-16-0.75(Y) 0.75 1.0 10 16 2" 14.5
440X260X240
QDX15-10-0.75(Y) 0.75 1.0 15 10 2.5" 14.5
440X260X240
QDX15-18-1.1(Y) 1.1 1.5 15 18 2" 18 590X350X250
QDX32-12-1.5(Y) 1.5 2.0 32 12 3" 20 590X350X250
QDX65-7-2.2(Y) 2.2 3.0 65 7 4" 22 530X350X285
