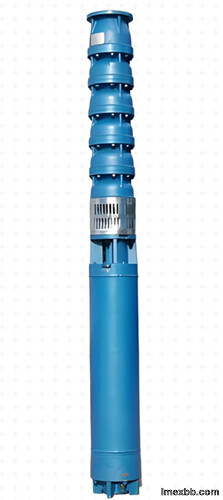

QJ Deep well borehole pump submersible multistage centrifugal type

deep well pump is a type of pump submerged in groundwater wells for water
extraction and conveyance. It integrates the motor and pump into a single unit and
is widely used in agricultural irrigation and drainage, industrial and mining
enterprises, urban water supply and drainage, and sewage treatment. Since the motor
is also submerged in water, its structural requirements are more specialized than
those of general motors. The motor's structural forms include dry, semi-dry, oil-
filled, and wet types.
Before starting the pump, the suction pipe and the pump body must be filled with
liquid. Once the pump is operational, the impeller rotates at high speed, causing
the liquid inside to spin along with the blades. Under the action of centrifugal
force, the liquid is flung away from the impeller and ejected outward. The ejected
liquid gradually slows down in velocity and increases in pressure within the pump
casing's diffuser chamber, then flows out through the pump outlet and discharge
pipe. At this point, a low-pressure vacuum zone devoid of both air and liquid forms
at the center of the blades as the liquid is thrown outward. The liquid from the
reservoir is drawn into the pump via the suction pipe under the influence of
atmospheric pressure on the reservoir surface. Thus, the liquid is continuously and
repeatedly drawn from the reservoir and discharged through the discharge pipe.
Submersible pump components: consists of a control cabinet, submersible cable,
discharge pipe, submersible electric pump, and submersible motor.
In terms of medium usage, submersible pumps can be broadly categorized into three
types: clear water submersible pumps, sewage submersible pumps, and seawater
submersible pumps (corrosive)
The QJ type submersible pump is a water extraction device where the motor and pump
are directly connected and submerged in water for operation. It is suitable for
extracting groundwater from deep wells and can also be used in water extraction
projects such as rivers, reservoirs, and canals. Primarily employed for
agricultural irrigation and livestock water supply in plateau and mountainous
areas, it is also applicable for water supply and drainage in urban areas,
factories, railways, mines, and construction sites.
characteristics
The motor and pump are integrated, allowing submerged operation, ensuring safety
and reliability.
2. No special requirements for the well pipe or water lifting pipe (i.e., steel
pipes, concrete pipes, earthen wells, etc., are all acceptable: under pressure,
steel pipes, rubber hoses, plastic pipes, and the like can all be used as water
lifting pipes).
3. Easy and simple installation, operation, and maintenance, with a small
footprint, eliminating the need for a dedicated pump house.
4. The results are simple and save raw materials. Whether the conditions for
submersible pumps are suitable are directly related to their lifespan and proper
management.
