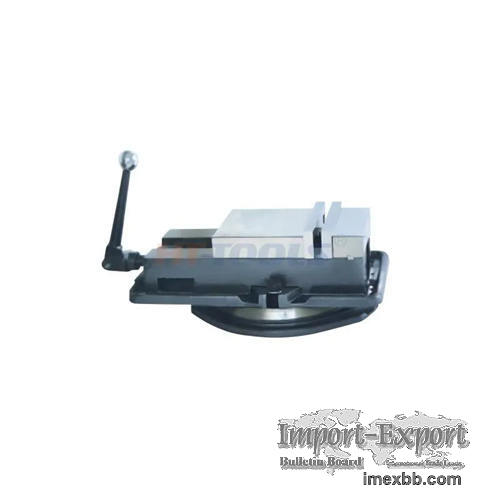

QM ACCU-Lock Precision Machine Vises

1. QM ACCU-Lock Precision Machine Vise is main attchments to precision millings
grinders CNC machines, it is particularly suitable for the finishing of
precision parts.
2. Parallelism 0.025mm/ 100mm, squareness 0.025mm.
3. The special segment in the movable jaw forces the vertical pressure downward
when the horizontal.pressure works, so that this jaw does not lift the
workpiece.
4. For positions allow extra capacity to change opening of jaw.
5. As the thrust component of the screw is equipped with thrust needle bearing
if can be easily operated.
Order No Width of Jaw(mm) Height of Jaw (mm) Max.Opening
(mm) GW/NW (kg) Paking Shape  LxWxH (cm)
QM16100 100 32 100 17/16 paper case 38x25x18
QM16160 160 45 140 40/38 49x32x23
QM16200 200 50 190 75/69 wooden case 62.5x41x25.5
