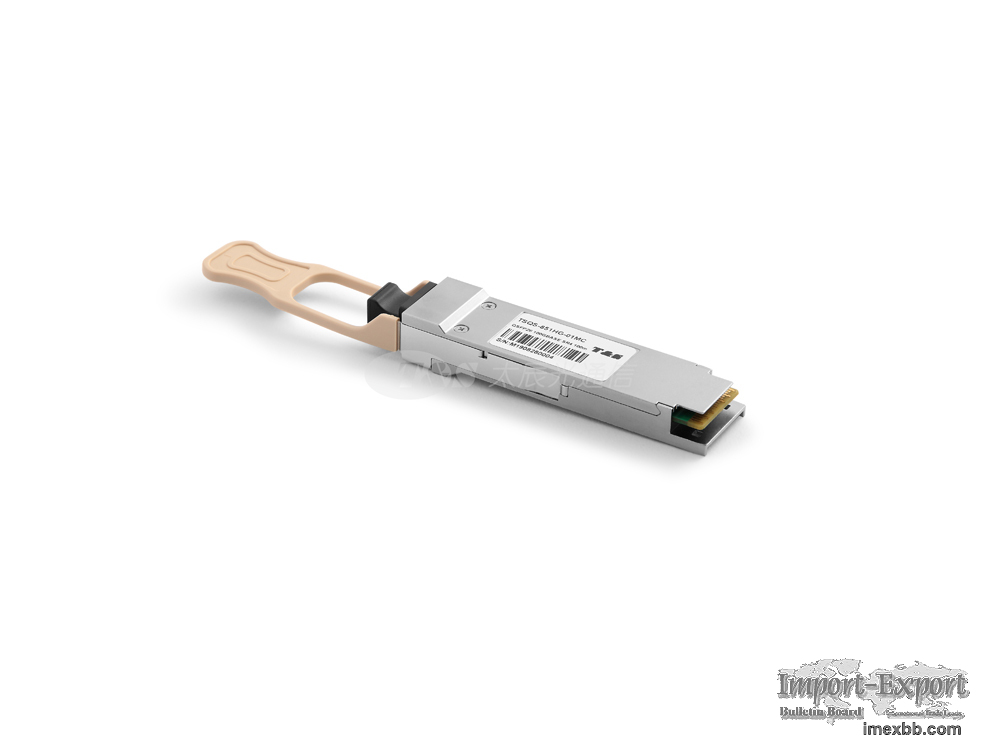

The QSFP28 100G-SR4-100m module is a highly integrated 4x25G transceiver
focused on reach, bandwidth, density and cost for high port-count 100G systems,
and client-side 100G interfaces. Each lane can operate at 25Gbps up to 70m
using OM3 fiber or 100m using OM4 fiber. These modules are designed to operate
over multimode fiber systems using a nominal wavelength of 850nm. The
electrical interface uses a 38-contact edge type connector. The optical
interface uses a 12-fiber MTP/MPO connector.
Features of 100G QSFP28 SR4 100m
4 channels full-duplex transceiver modules
Transmission data rate up to 25Gbps per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Hot-pluggable QSFP28 form factor
Maximum link length of 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
Single 1X12 MPO connector receptacle Hot-pluggable electrical interface
0–70°C operating temp
Low power consumption < 2.5W
RoHS6 compliant (lead-free)

Applications of QSFP28 100G SR4 100m
100GBASE-SR4 100G Ethernet

Specifications of QSFP28 100G SR4 100m
Recommended Operating EnvironmentOptical Transmitter PerformanceOptical
Receiver Performance
Recommended Operating Environment specifies parameters for which the electrical
and optical characteristics hold unless otherwise noted.
Parameter Symbol Min Typical Max Unit
Power Supply Voltage VCC 3.135 3.300 3.465 V
Operating Case Temperature TC 0 25 70 °C

Pin Descriptions of QSFP28 100G SR4 100m

Pin Definition of QSFP28 100G SR4 100m
Pin Symbol Name/Description
1 GND Ground
2 Tx2n Transmitter Inverted Data Input
3 Tx2p Transmitter Non-Inverted Data Input
4 GND Ground
5 Tx4n Transmitter Inverted Data Input
6 Tx4p Transmitter Non-Inverted Data Input
7 GND Ground
8 ModSelL Module Select
9 ResetL Module Reset
10 Vcc Rx +3.3 V Power supply receiver
11 SCL 2-wire serial interface clock
12 SDA 2-wire serial interface data
13 GND Ground
14 Rx3p Receiver Non-Inverted Data Output
15 Rx3n Receiver Inverted Data Output
16 GND Ground
17 Rx1p Receiver Non-Inverted Data Output
18 Rx1n Receiver Inverted Data Output
19 GND Ground
20 GND Ground
21 Rx2n Receiver Inverted Data Output
22 Rx2p Receiver Non-Inverted Data Output
23 GND Ground
24 Rx4n Receiver Inverted Data Output
25 Rx4p Receiver Non-Inverted Data Output
26 GND Ground
27 ModPrsL Module Present
28 IntL Interrupt
29 Vcc Tx +3.3 V Power supply transmitter
30 Vcc1 +3.3 V Power Supply
31 LPMode Low Power Mode
32 GND Ground
33 Tx3p Transmitter Non-Inverted Data Input
34 Tx3n Transmitter Inverted Data Input
35 GND Ground
36 Tx1p Transmitter Non-Inverted Data Input
37 Tx1n Transmitter Inverted Data Input
38 GND Ground

Important Notice of QSFP28 100G SR4 100m
Performance figures, data and any illustrative material provided in this data
sheet are typical and must be specifically confirmed in writing by T&S before
they become applicable to any particular order or contract. In accordance with
the T&S policy of continuous improvement specifications may change without
notice.
The publication of information in this data sheet does not imply freedom from
patent or other protective rights of T&S or others. Further details are
available from any T&S sales representative.
