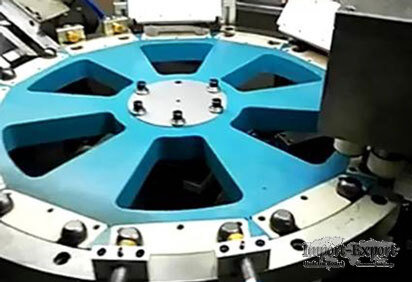

QTXET-01 Ball Studs Eddy Current Sorting Machine

There are two main types of ball studs: one is a combination of a spherical pin
and an integral ball seat, and the other is a combination of a hemispherical
ball pin and a spherical member. In the past, coil springs were used for
preloading and compensating for wear. Nowadays, synthetic resin pellets with
elasticity and lubrication are widely used, which reduces the cost and improves
the steering stability. In addition, the material and shape of the dust cover,
the type of grease, etc. have been greatly improved, the grease nipple has been
eliminated, and a maintenance-free structure has been realized. The ball stud
is mainly composed of an end cap, a ball pin, a ball seat and a dust cover.
Ball studs are widely used in independent suspension systems, and the control
arm or thrust rod is often connected to other components through a ball stud at
the end. The main function of the ball pin is to achieve the up and down of the
wheel and the steering movement.

The ball studs eddy current sorter is a sorting machine with high practical
value in industrial applications. As one of the professional manufacturers of
vortex separators, BKN Automation will introduce you to this product in this
article.

QTXET-01 Ball Studs Eddy Current Sorting Equipment Performance


Detection channel 2 channel
Detection speed 10～20pieces/min
Detection position Bulb and rod
Workpiece surface state turning and extrusion
Calibrated crack length 5 mm x width 0.01 mm x depth 0.2 mm
High pass 0.1Hz～650Hz
Low pass 1Hz～10000Hz
Phase rotation 0-360° step1 °
Gain 0～99dB，step size 0.1dB
Frequency ranges 10Hz～10MHz
Sampling rate 1～200000SPS adjustment
Probe drive 1%~100% adjustment


Features of QTXET-01 Ball Studs Eddy Current Sorting Machine

Synchronized alarm output controlled by an internal and external clock
The high precision end, end to tail signal removal
High precision real-time and delayed output
Fast digital／analog electronic balance
Memory track delay blanking function
Real-time impedance display
The instrument can match any probe
Remote automatic help system
The man-machine interface in Chinese and English
Non-equal amplitude phase／amplitude alarm domain
The range of impedance diagram is adjustable in 5 grades

Why BKN NDT Testing Equipment

The technology of BKN originated from eddy current Laboratory of Institute of
Materials, Nanjing University of Technology. At present, it is a leading high-
tech non destructive testing equipment manufacturers in China. The company is
committed to the development of eddy current, ultrasonic, magnetic flux leakage
and various non-standard equipment, holding independent research and
development of a number of national patents.

Minimum Order: 1 sets
