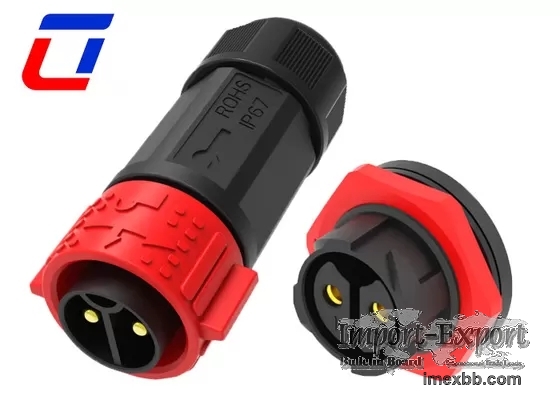

Quick Lock Cable To Board Male Female Waterproof Connector 2 Pin 50A With P

2Pin 50A Cable To Board Waterproof Male Female Power Connector With Push
Locking



Quick Details of 2Pin waterproof Connector



This model connectors is specialized for various power applications,
easy ooperation design in push locking system, just need a second to insert,
then it will lock automatically.Both screw terminals and soldering terminals
option available.



Thanks to its screw based terminals, soldering is not required and
installation just takes a few minutes for field assembly. which is the
perfect solution to make your own waterproof connection cables easily.



It's also a good choice for the applications which requests wire
connections in soldering with the suitable contact pin size.



Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5 , +2Pin
and 2+20Pin available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time
working
Cable assembly service supported, welcome to custom
OEM/ODM welcome


Electrical Parameters
Number of Poles 2Pin waterproof connector
Current Rating 50A max
Voltage Rating 600VAC max
Durability Voltage 2500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2


Application industries



Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery


Production Dimension



Quick Lock Cable To Board Male Female Waterproof Connector 2 Pin 50A With
Push Lock 0



More Technical Details



Quick Lock Cable To Board Male Female Waterproof Connector 2 Pin 50A With
Push Lock 1



FAQ



Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the
connector insulation material used, the spacing between the size of contact.
Some of the components or devices in less than its rated voltage may not be
completed to its functions.

Q2:What is rated Current?

A2: Rated current, also known as operating current. With the rated voltage,
as in the case below the rated current, air plug in general can work
properly. Plug in the aviation design process, through the thermal design of
the connector to meet the requirements of the rated current, because in
contact with on a current flow out of date, due to conductor resistance and
contact resistance, contact on will be heat. When the heat exceeds a certain
limit, the plug will damage the insulation and the formation of air exposure
on the surface of the coating to soften, resulting in failure.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm
the next.
* Confirm Cable guage
* Confirm Cable Length and Material.



Quick Lock Cable To Board Male Female Waterproof Connector 2 Pin 50A With
Push Lock 2
