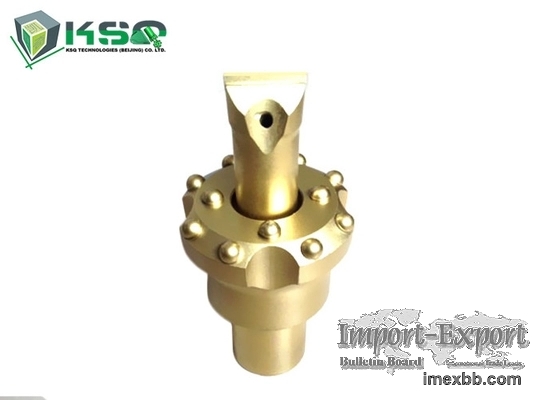

R32 / R25 Rock Drilling Tools Tungsten Carbide Drill Bit Shank Pilot Adapte

Description

This type of bit is used for making large cut holes in drifting and tunneling.
A smaller hole is first drilled and then reamed to the final size in
combination with a pilot adapter.


• Widely used in drifting and tunneling
• R32 thread system



Type: R32 Pilot Adapter 6°

Color Based on Customer requirements
Processing Type CNC milling and proprietary heat treatment process
Applicable Industries Construction works , Energy & Mining
Type drilliing tools
Material High Manganese Steel, Tungsten Carbide
Processing Type Forging
Use Ore Mining, quarrying,mining and tunnelling
Connection thread R25, R28, R32, T38

Specification

Part Number Bit Diameter (mm) Bit Diameter (inch) Tip Size (W x
H, mm)
4148300547 40 1 4/7 15x10


Product Code and Brief Description Angle Front Flushing Holes Side
Flushing Holes
Weight

(kg)

PA126-6D-R32, R32 Pilot Adapter 6° - - - 2.2
