R407c cold storage use refrigeartion compressor unit OBBL2-100M for fruit p

Product Description
R407c cold storage use refrigeartion compressor unit OBBL2-100M for fruit
precooling use
Rack model (OBBL) 2-100M
Refrigerant R407c
Power supply 380V/3/50HZ
Evaporating temperature 12℃～-25℃
Condensing temperature 35℃
Condenser type Evaporative condenser
Economizer. Without
Compressor Type Semi hermatic screw type
Model CSH6553-50Y
Qty 2
Cooling capacity Evap. Temp.0℃ Qo(W) 220800
Pe(KW) 52.4
Evap. Temp.-5℃ Qo(W) 181400
Pe(KW) 50.0
Evap. Temp.-10℃ Qo(W) 147400
Pe(KW) 48.0
Evap. Temp.-15℃ Qo(W) 118200
Pe(KW) 46.2
Evap. Temp.-20℃ Qo(W) 93400
Pe(KW) 44.6


Compressor rack product range
Single compressor condensing unit
Air cooled condenser Water cooled condenser Evaporative cooled
condenser
Scroll type compressor √ √
Piston type compressor
(One stage/Two stage) √ √ √
Screw type compressor
(One stage/Two stage) √ √ √
Parallel compressor racks
Evap. Temp. -14~10℃ -15~-35℃ -36~-60℃
Scroll type compressor √ √
Piston type compressor
(One stage/Two stage) √ √ √
Screw type compressor
(One stage/Two stage) √ √ √
Available refrigeration system Freon Direct expansion refrigeration system
Freon Barrel pump/surge drum refrigeration system
Brine refrigeration system (Freon/Glycol/Calcium chloride)
CO2 as secondary refrigerant refrigeration system
CO2 Cascade system
Other products & service
1. Refrigeration system design, selection and quotation.
2. Unit cooler, plate heat exchanger, water cooling condenser, evaporative
condenser, CA storage equipment, etc.
3. PLC auto control customized programming, APP remote control.
4. Equipment supply including refrigeration, insulation & auxilary materials.
5. Global installation service.
Application
1. Fruit & vegetable precooling, storage, controlled atmosphere storage(CA
storage) and freeze drying, etc.
2. Poultry & meat exclusion, precooling, quick freezing and freezing storage,
etc.
3. Sea food (Fish & shrimp, etc) quick freezing, storage and -60℃ deep
freezing storage.
4. Chemical refrigeration.
5. Water chiller for workshop air conditioning, poultry processing, etc.
6. Heat pump that producing hot water for poultry feather removing, etc.
What we don't do
1. We don't do Ammonia related refrigeration system.
2. Commercial air conditioner.
3. Air compressor.
Socia media & contact info
1. Facebook: www.facebook.com/compressorracks
2. Blogger: compressorracks.blogspot.com


R407c cold storage use refrigeartion compressor unit OBBL2-100M for fruit
precooling use 0R407c cold storage use refrigeartion compressor unit OBBL2-100M
for fruit precooling use 1

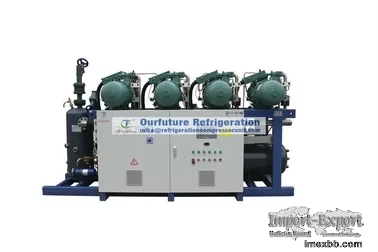

Click to Enlarge
