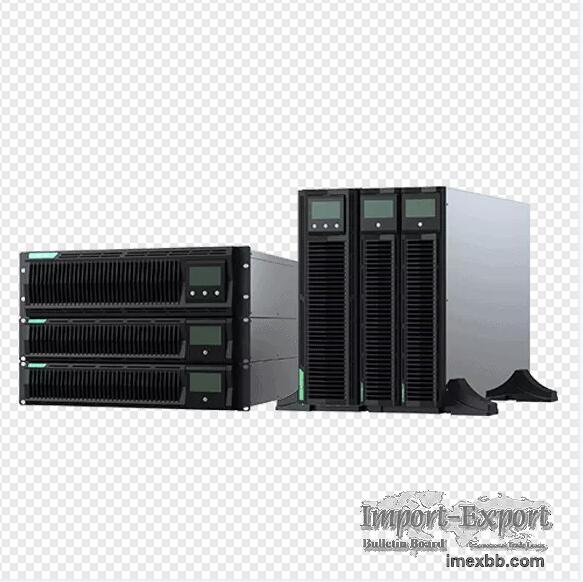

Rack Mount UPS (Li-ion Batt)

UPS rack mount power supply, also called rack mount uninterruptible power
supply, has small size, large capacity and high efficiency that can meet the
needs of high power density!

DSP series (1-80KVA)
Why choose SCU rack mountable UPS?
SCU DSP series ups power supply rack mount and lithium-ion battery combined has
below great features.

Lithium-ion battery access
Bi-directional active equalization BMS control;
Perfect battery charge and discharge management strategy;
Parallel battery pack to extend backup time;

Good performance
ECO mode, efficiency 99%;
19 inch rack mount UPS design;
Isolation of cold and hot air duct, stepless speed control;

Manageability
The rack-mounted UPS power supply has LCD display, which provides easy-to-read
status;
EPO remote emergency power off interface;
Built-in parallel kit, only parallel line is needed to achieve 1+1 parallel
10kva Rack Mount UPS Power Supply Specifications

Model DSP-10KVA-LI DSP-15KVA-LI DSP-20KVA-LI
Mains input Input mode 3Ph+N+PE
Input voltage 380V/400V/415V
Input frequency 50Hz±10%、60Hz±10%
Input PF 0．99
Lithium ion pack Battery capacity ECM-240B10P4；240V/10AH
Battery number 2
Back up time 30mins 20mins 10mins
BMS Bidirectional Active Equalization
AC output Output voltage 220V/230V/240V；380V/400V/415V
Output PF 0.9
Overload Operate 10mins with 125% load
AC/AC efficiency ≥94% at online mode；≥99% at ECO mode；

As a reliable uninterruptible power supply factory, we will do our best to meet
all the needs of customers.
