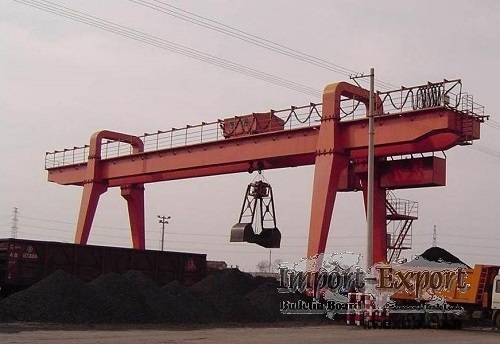

Rail Mounted Gantry Crane

Rail mounted quay crane(also called RMG crane) is a type of large dockside
gantry crane found at container terminals for loading and unloading intermodal
containers from container ships. It is manufactured to individual customer
needs in a variety of different stacking heights and spans.

Advantages of rail mounted gantry crane

Exceptional anti-sway performance

Increased productivity compared with alternative designs

Low maintenance and spare part costs

Smooth gantry operation

Improved performance where high in-service winds prevail

Optimum design for automation

In-house expertise and excellent after-sales service

Lower energy costs

Zhonggong rail gantry crane features

1. Rail Mounted Gantry Crane is widely used together with winch or trolley for
lifting device. It is a medium and heavy size crane which travels in track.

2. It is constituted by main beam, support legs, crane traveling organ, trolley
travel mechanism, electric equipment and operation cab.

3. It is a regular crane widely used in workshop, storage, port and
hydroelectric power station and some other outdoor place, where it has a high
frequency or more lifting times.

4. Its proper lifting weight is 5 to 160 tons,and proper span is 18 to 35
meters.

5. Power is supplied by cable or slide wire.

6. Its proper working temperature is -20--+40 centigrade. It is prohibited for
lifting melt metal, flammable, explosive, corrosion, overloading, dust and
other dangerous operations.

7.Customized design based on your specific applications is available. Grab
bucket, container spreader, and other special lifting devices can be equipped
to do special material handling work.

8. High efficient, with the work class high up to A5( Medium) and A6( Heavy).

9. Three control modes for your selection: cab control, remote control, floor
control.

Rail mounted gantry crane design

Zhonggong provides professional rail mounted gantry crane for sale, our rmg
cranes brings together decades of experience in crane design to achieve high
performance, high reliability and operational accuracy, while significantly
reducing operating costs and energy consumption.

We can tailor rmgc crane to your specific operational needs.

(1) Main beam structure

The main girder structure is composed of two box end girders and the frame
girder is supported on the rigid and flexible legs. At present, the partial
rail box beam is often used, the high strength bolt or welding method is used
to connect the main beam and the rigid leg, and the twisted connection mode is
used to connect the flexible leg. For the convenience of installation of rmgc
cranes, the connection between the main beam and the end beam is generally
connected by high strength bolts.

(2) Door leg structure

For small and medium span rail container gantry crane, both rigid and flexible
door legs adopt box structure. For the long-span crane, the three-degree-of-
freedom dumpling connection is adopted for the connection between the flexible
leg and the main beam, and a synchronous detection device is set up.

(3) Trolley structure

The structure of the running trolley is different according to whether the
hoisting mechanism is of wire rope drum type or telescopic rigid frame type,
and the combined structure of box girder and grid is generally adopted. The
structure of the running trolley takes into account the arrangement of the
hoisting mechanism and the running mechanism of the trolley, and has a certain
stiffness.

There are many cranes suppliers, but we are one of the best choices for you. We
provide container crane for sale, overhead and gantry cranes, contact us to
know rail mounted gantry crane specifications or rail mounted gantry crane
price.
