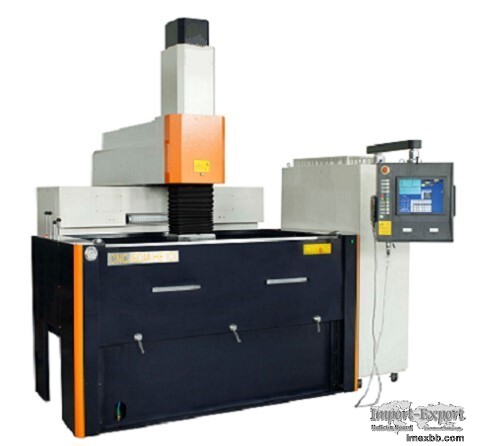

Ram type CNC sinker EDM machines

I). Main Specification

Model

TEDM 70CNC

TEDM100CNC

TEDM130CNC

T , EDM180CNC

TEDM200CNC

Work table(mm)

900x500

1200x600

14 , 00x700

2000x1000

2500x1000

X axis travel(mm)

700

1000

1300
< , br>1800

2000

Y axis travel(mm)

400

500

600

700

700

Z axis travel(mm)

300

400

500

500

500

Best Roughness(um)

0.2

0.2

0.2
,
0.2

0.2

Max machining speed(mm³/min)

500

500

500

500

500

Max electrode weight(KG)

50

80

100

2 , 00

200

Max work piece weight(KG)

3000

4000

6000
,
10000

18000

Table to electrode nose (mm)

500~800

500~900

550~1050 ,

800~1300

800~1300

Power Input(KVA)

13

13

13

13 ,

13

Max work piece dimension(mm)

1400x850x500

1800x1100 , x600

2200x1300x650

3500x1800x850
,
3500x1800x850

Tank capacity(L)

860

1550

2400
,
2160

2160

Machine net weight(KG)

4000

5000

8000
,
13000

15000

Machine dimension(L*W*H)( mm)

2380X3060X2675

2770X3685X2775

3720X4200X3430

5000X4500X3650

5 , 000X4500X3650

II) Standard Equipment Function

a) CNC control system, networking support

b) 15-inch LCD Touch Screen

c) USB Input & Output

d) AC Panasonic Servo Motor

e) Clamping Chuck for job holding

f) Electrode holder

g) Working Light

h) Auto Processing&Positioning

i) Expertise Technology Database System

j) Surface Finishing & Special Circuit for Finishing hard alloy

k) Functions of memorizing when power was cut and auto-stop after processing

l) Function of auto-adding transitional arc (Arbitrary angle)

m) Data transmission

III) Standard Accessories

a) Machine sizing block

1 set

b) Manual control box

1piece

c) Explosion-proof fluorescent light

1piece

d) Filtration paper core

4pcs

e) Standard toolbox (Tools included)

1piece

f) Operation manual

1piece

g) Hand fire extinguishers

1piece(dry type)

IV) DOCUMENTS

a) Two sets for technical literature

b) Provision of machine parameters.

c) Dedicated programmer in case of PLC installed.

d) Machine program soft and hard copies.

e) Manual for machine programming.

f) Manual for calibration procedures.

Minimum Order: 1 sets
