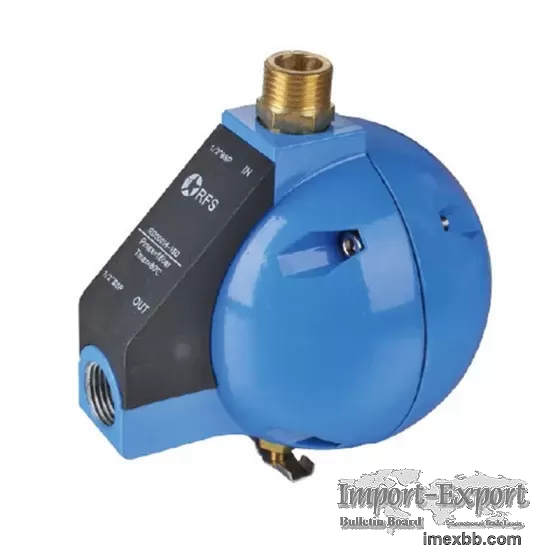

RD50016-15G Float Type Drain Valve

A RD50016-15G Float Type Drain Valve is an automatic device used to remove
condensate (water, oil, or other liquids) from compressed air systems, steam
systems, and other industrial processes where condensate collects. These valves
operate based on the liquid level within a chamber, using a float mechanism to
open and close the valve.
Key Features Of Float Type Drain Valve:
Automatic Operation: Operates without manual intervention, ensuring continuous
and efficient removal of condensate.
Reliability: Designed to operate reliably in various conditions, including high
pressure and temperature environments.
Durability: Typically made from corrosion-resistant materials such as stainless
steel to withstand harsh conditions.
Maintenance-Friendly: Simple design allows for easy maintenance and inspection.
Product Details
Model RD50016-15G
Connection ports G1/2"
Seal material NBR
Media Water
Working pressure 0-16Bar
Max. pressure 20Bar
Working Temp. -10℃~80℃
Valve body Aluminum
Working type Leverage and Buoyancy Type
