Reactor and Pressure Vessel Internals

Many refiners know that it is important to have the best catalyst to ensure
optimal performance; however, only a few recognize that it is equally
important to have the best reactor internals to ensure the best possible
conditions for the catalytic reactions in your reactor.

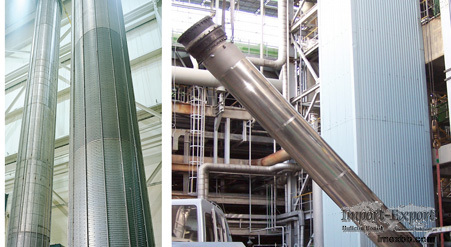

YUBO designs and manufactures various vessel internals for media retention--
center pipe, scallop, and Lateral System. We've supplied center pipe,
scallop, v wire Lateral Systems for hundreds of radial, downflow, and upflow
systems worldwide. This experience has made us an industry leader in vessel
internal design.



Reactor and Pressure Vessel Internals



Our products rely on our V-wire screens, the top-of-the-line product in
vessel screen internals.

These screens are fabricated by attaching V-shaped profile wire to an array
of support rods and welding each intersection of wire and rod. That forms an
extremely robust screen with continuous slot openings of very close
tolerance.



Our products are integral to all the major chemical processes and are used in
a variety of industrial applications.


Center Pipes (Inner Screens): Essential for radial flow reactors, these
cylindrical screens form the inner boundary of your catalyst bed. They are
expertly designed to ensure uniform collection or distribution of flow from
or to the center, preventing channeling and maximizing catalyst contact.



Center Pipes Inner Screens



Scallops (Outer Screens): Forming the outer boundary in radial flow systems,
scallops run parallel to the vessel wall. They guarantee even flow
distribution or collection along the periphery, eliminating wall effects and
ensuring the entire catalyst bed is effectively utilized.



Reactor Internals Scallops



Header and Lateral Systems: Whether for collectors or distributors, these
systems (using either a central header pipe or hub connected to multiple
screen laterals) are the gold standard for achieving uniform flow across the
entire vessel diameter in downflow or upflow reactors. They combat channeling
and ineffective bed usage, maximizing process efficiency and yield.

Reactor Internals Header and Lateral Systems



YUBO's internals are integral components in major chemical processes
worldwide, trusted across diverse industrial applications. Our experience
translates directly into reliable, high-performance solutions tailored to
your specific needs.



Don't let subpar internals be the bottleneck in your process. Discover how
YUBO's latest-generation reactor internals, built on industry-leading V-wire
screen technology, can help you achieve uniform flow, maximize catalyst
effectiveness, and unlock the true performance potential of your reactors.



Reach out to a YUBO advisor today to discuss your specific challenges and
explore how our tailored vessel internal solutions can drive significant
improvements in your operations.
