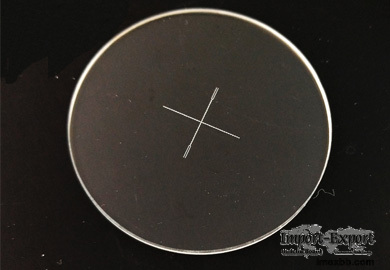

Reticles

The precision custom optical glass reticle
is generally installed on the focal plane of the right eyepiece of the
telescope. It is a thin glass with reticle dense lines engraved on the surface
of the pole book. In theory, this thin glass also participates in imaging and
extends the focal length of the objective lens, which will have more or less
influence on the length of the right eyepiece.

BRD Optical is one of the few companies producing custom glass reticles because
the reticles require extremely high cleanliness. Any tiny dust will produce
large black spots during observation. At the same time, the accuracy of the
installation position of the custom glass reticle is extremely high. Therefore,
try not to disassemble it. If it is disassembled, it must be as it is recovery.
We also provide etched reticle optics
such as etched reticle 1x sight.

Custom Glass Reticles Applications
The glass reticle is generally installed on the focal plane of the right
eyepiece of the telescope or scope. It is made of a thin glass with a very thin
surface engraved with the reticle dense line. In theory, this thin glass is
also involved in imaging, extending The focal length of the objective lens will
more or less affect the length of the right eyepiece. The glass reticle has
extremely high requirements for cleanliness, and any tiny dust will produce
large black spots during observation, and the installation position of the
reticle requires extremely high precision.
The glass reticle generally adopts chromium plating and etching to form the
danger of the glass reticle. The line adopts chromium plating, and the luminous
type is filled with titanium trioxide or zinc oxide powder after etching.
The glass reticle produced by Jiujing has an accuracy of +/-0.002m and is
widely used in medical and military fields.
For special-purpose reticles, Jiujiang can customize anti-reflection,
waterproof, oleophobic, and anti-glare coatings for customers.


Custom Glass Reticles FAQs
Can A Custom Reticle Be Made?Can A Custom Reticle Be Made?
Yes, we can. We will process the template according to the CAD drawings
provided by the customer.

What Are The Main Processing Methods?What Are The Main Processing Methods?
There are mainly two methods of glass reticle etching and photolithography. The
correct method will be selected according to the customer's drawing
requirements and actual results.

BRD optical co. Ltd is a professional precision reticle company, if you want to
know more about optical reticle and reflex sight reticle, please contact us.

Minimum Order: 5 pieces
