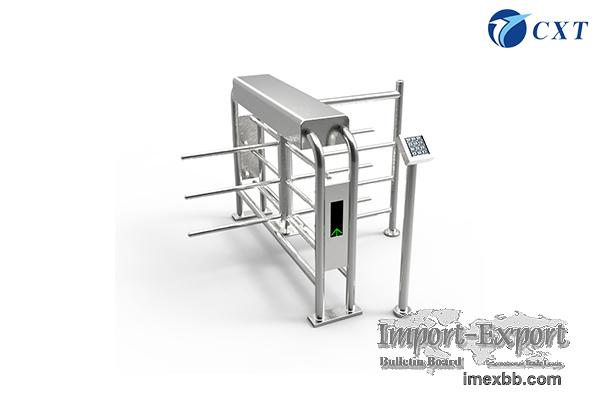

Revolving Door Turnstile

As one of the turnstile suppliers, CXT tech dedicates to providing all kinds of
middle and high-class Turnstile solutions for Integrators and Distributor
worldwide with 12 years history.

Revolving door turnstile Unique Features:
Adopt Brush-less motor, the revolving turnstile/ gate (revolving turnstile
doors) has a longer lifespan, up to 10 million.
Adopt ARM control technology, it has stronger function and better
expandability.
Pass prompt, booster rotation.Smooth running and no noise.
Free passing setting.Buffering and anti-collision,anti-reverse passing.
Uni-directional and bi-directional access control can be arbitrary set.
Fault self-checking and warning, convenient for users to use and maintain.
Auto free pass when power is off, auto check and reset when power is on
Revolving Door Turnstile Main Function:
With auto failure checking and failure reminding function for easier
maintenance and operation.
Can install with standard card reading window, external switch button, remote
control are all available, no matter for uni-direction or bi-direction access.
With automatic turning function: When turnstile unlocks, it rotates 120 degrees
for pedestrian's passing and then automatic reset (lock). Or When there is no
access within the set time, the system will automatically cancel the user's
passing authority and automatically close(lock), the setting time can be 3 s, 5
s, 10 s, 60 s.
Anti-intrusion function: Without receiving the open door signal, Turnstile's
rod locks automatically.
Anti-trailing function: Turnstile's rod rotates 120 degrees and then
automatically locks to avoid the trailing.
The rod will open automatically to evacuate people in the event of an
emergency, such as fire hazard, power failure etc.,
Can be connected to various card-reading devices, and receiving the signal of
the gate's control.
The product can be connected to multiple control device, can be controlled by
the external button or remote control. The product can switch between uni-
direction or bi-direction.
With precise optical sensor and advanced algorithm, so that there is no delay
for the detecting signals and it helps to avoid several persons to pass the
access at one time.
Bi-direction counting function can be customized. (the number can accumulate in
one setting direction and reduce from the reverse direction)
Revolving Door Turnstile Technical Parameter:
Product Model: CXT-Z85A
Housing material: International Stainless steel 304
Housing processing work-craft :Adopt laser, bend, cut, weld, polish and etc.
Specification and size: L1400*W280mm*H1000(can be customized )
Weight:about 70kg
Lane width: 570-800mm(adjustable)
Voltage : AC220±10% V,50HZ
Drive motor: DC Brushless Motor（50W/24V）
Motor rotation: 1600r/m
Standard input interface: Relay switch signal
Lifespan:5-10years
Working temperature recommended:-40℃ ～ 80℃。
Suitable humility:5％—— 95％
Delayed reset time: 3S、5S、10S、20S adjustable
Flow rate: 20-35person/minute
Working environment: Indoor and outdoor

We CXT is the best turnstile company in revolving door manufacturers of China.

Revolving Door Turnstile Function Comparison Table：
Seq. Item name Market product CXT upgraded product
1 Rotation mode Hand push Motor drive
2 Positioning principle Optocoupler point Motor self-position
3 Lock mode Positioning arm Clutch device
4 Transmission mode Electromagnetic valve Brush-less motor
5 Control Technology SCM ARM
6 Reset mode Manual Auto
7 Buffering,Anti-collision General excellent
8 Anti-reverse None has
9 Noise Big small
10 Mechanical wear Big small
11 Illegal alarm None has
12 Smoothness Weak Strong
13 Life-span 1-3Year 5-10year
14 Passing Memory None has
15 Feedback signal output None has

Minimum Order: 1 sets
