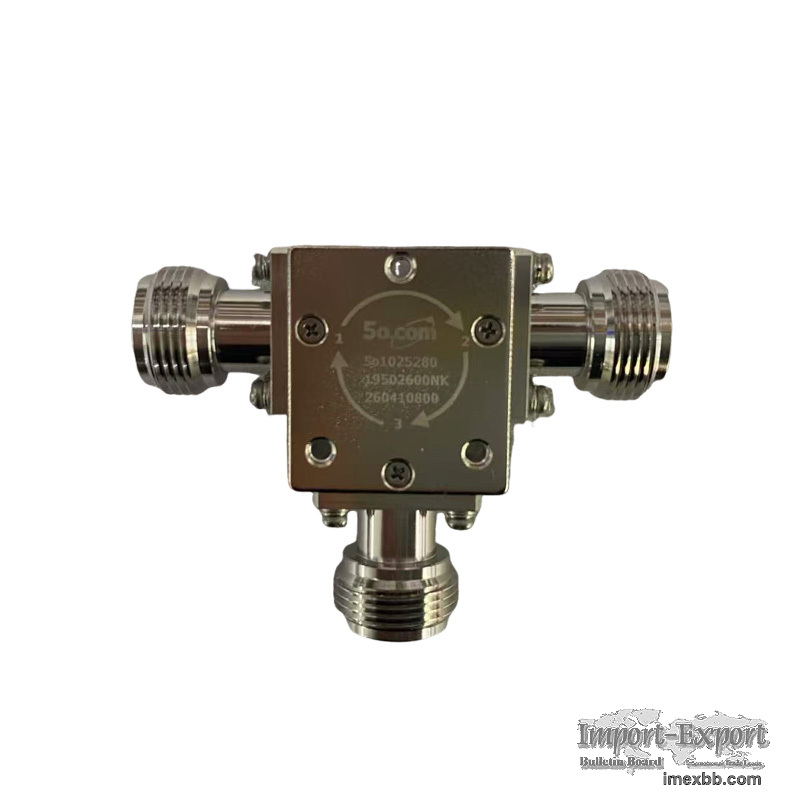

RF Coaxial Circulator 1950MHz to 2600MHz for Telecom & Wireless Base Statio

Professional 1950–2600MHz RF coaxial circulator for telecom infrastructure,
delivering superior isolation & stability for 4G/5G base station deployment.

Model Number:5o102528019502600NK
Frequency Range:1950~2600MHz
Insertion Loss:0.5dB
Isolation:18dB
VSWR:1.3
Forwar , d Power:100W
Reverse Power:100W
Connector Type:N Female
Dimension:25.4*28.5*15mm
Operation Temperature:-40℃~+85℃
Storage Temperature:-55℃~+125℃
Impedance:50Ω

High-performance RF coaxial circulator operating from 1950MHz to 2600MHz,
engineered for reliable signal transmission and isolation in telecom and
wireless base station applications. Featuring low insertion loss, high
isolation, excellent VSWR, and stable performance across wide temperature
ranges, this circulator effectively protects power amplifiers, ensures
efficient one-way RF signal flow, and supports 4G, 5G, TDD, small cell, and
macro base station systems. Ideal for wireless infrastructure, radio access
networks, and dense RF front-end integration with compact design, high power
handling, and RoHS compliance for industrial-grade deployment.

5o.com is a modern high-tech enterprise specializing in the research,
development,production, and sales of RF microwave passive components.Focusing
on independent innovation,the company primarily manufactures microwave passive
components such as RF isolators, circulators,coaxial loads (terminals),coaxial
attenuators,power splitters, waveguide-to-coaxial converters,directional
couplers,filters,and duplexers/multiplexers.These products are widely used in
5G communications,satellite navigation,radar electronic countermeasures,and
aerospace applications.

Minimum Order: 1 pieces
