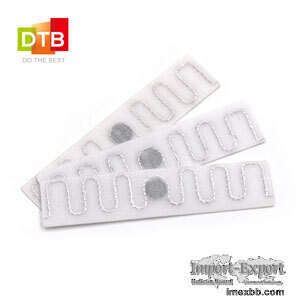

RFID Waterproof Fabric Tag

Overview

Operating Frequency
    860~960 MHz

International Standards
    EPC Global Class1 Gen2    ISO 18000-6C

Chip options
    Impinj R6         NXP Ucode 7

Size options
    86*16mm       72*16mm    58*13mm     customized size

Thickness
    Tag thickness 0.6mm ( 1.3mm at chip position)

Base material
    COB + Washable fabric + metal fiber line

Glue options
    Hot melt glue       No need glue (by sewing)

Hole options
    hole punching       no holes

Working endurance
    3 years or 200 times washing
Description of RFID Waterproof Fabric Tag

High temperature and humidity resistance, can be washable, soaking and rubbing
repeatedly, can be direct ironing and sewing. With high sensitivity, strong
anti-jamming capability, excellent read/write performance etc. Mainly use for
clothing factories, laundry, medical logistics laundry, chemical raw materials
and high temperature, corrosion resistance and other
harsh environments.

Model Options

Packing details For ISO Size

●100 pcs per OPP bag;
● 10 pcs per white box;
● 10,000 pcs per paper carton;
● Carton size: 50*23*16 CM;
●G.W. : 20kg per carton.

DTB RFID is one of the most professional rfid solution providers, we provide
machine washable rfid tags, washable rfid tags, waterproof rfid tag, rfid
products, long rfid reader and etc. Want to know washable rfid tags price?
Please contact us.

Minimum Order: 10 pieces
