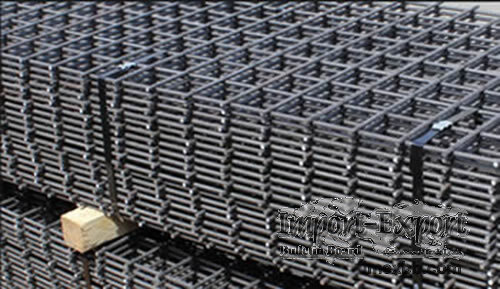

Ribbed Steel Bar Welded Mesh

This reinforcement welded wire mesh panels are made of ribbed steel bars bonded
via spot welding for slab and wall constructions. The ribbed steel rod used can
improve bonding to the concrete and minimize any concrete cracking that may
occur as a result of concrete shrinkage. This feature enables the ribbed steel
weld mesh widely used as building materials for block slab structure
reinforcing, and hollowed slabs reinforcement, building wall reinforcement and
support wall reinforcement. In practical uses, it is commonly used with bar
chairs as supports.

Materials and Types: Ribbed steel bar mesh can be divided into three types
according to materials: Hot dipped galvanized, electro galvanized or stainless
steel. It can be divided into two types according to steel bar sizes used:
heavy type (diameter of bar or rod 12mm minimum) and light type (diameter of
rebar rods from 3mm up to 10mm). Ribbed steel welded mesh can be divided into
square hole and rectangular hole according to the opening types.

The popular panel size of this reinforcing mesh is 6m length ×2.4m width. It
comes in a variety of bar thickness and the internal square or rectangular
sizes. Common square mesh are either 200×200mm or 100×100mm.
