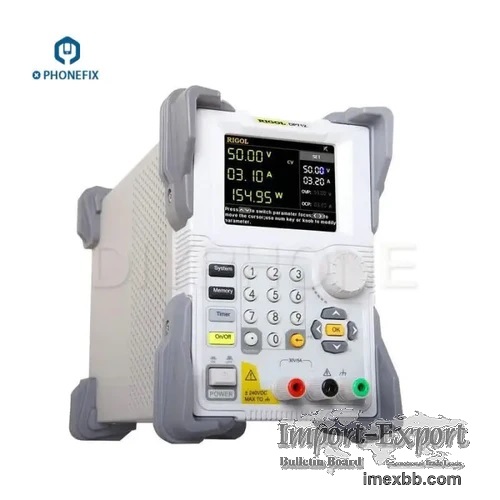

Rigol DP712 50V 3A Programmable Linear DC Power Supply

Rigol DP712 programmable linear DC power supply (single channel, 50 V/3 A),
Rigol DP712 DC power supply 50V/3A, high performance DC power supply
programmable linear DC power supply with power cable, spare fuse, quick
guide and so on, Single output 50V/3A, total power up to 150W, has excellent
load and line regulation rate, external trigger function supported, enabling
synchronous output for multiple devices.

Rigol DP711 DP712 Programmable Linear DC Power Supply 50V 30V 3A 5A 150W

Two models :
DP711 30V 5A 150W 1 channel(s)
DP712 50V 3A 150W 1 channel(s)

RIGOL Single Channel DP711 DP712 High Precision Programmable Linear DC Power
Supply 30V 5A

RIGOL's DP700 Series power supply is an affordable, programmable linear DC
power supply for benchtop applications. With quality performance
specifications, reliable output, and a small footprint, the DP700 Series
provides incredible benchtop value. The DP700s also support options
including timing output, trigger function, and high resolution.

Product Specification :
Front panel
3.5 inch TFT LCD
Function button
Output on/off key
Power on/off key
Knob
Number keys and return keys
Arrow keys and enter keys
Output terminal

Back panel :
Output power requirement
AC power connector
RS232 interface
Voltage selector
Fuse specification
Fuse cap
Exhaust port
Equipment size: 140mm (W) × 202mm (H) × 332mm (D) net weight 6.9kg

DP700 series is a basic power product, which is designed for these high-
reliability power users who have a lower cost and smaller size. It features
low-temperature wave noise, fast transient response time, excellent power
supply and load regulation and so on. And plus, DP700 series own powerful
timing output and complete protection function

Single output, maximum output power 150W
Low ripple and noise: output noise and ripple
<500μVrms/3mVpp
Input voltage: optional 220V/110V

Package includes :
1pcs x DC Power Supply

Minimum Order: 1 pieces
