Rod/Bar Induction Hardening and Tempering Machine

Rod/Bar Induction Hardening and Tempering Machine
Product Description

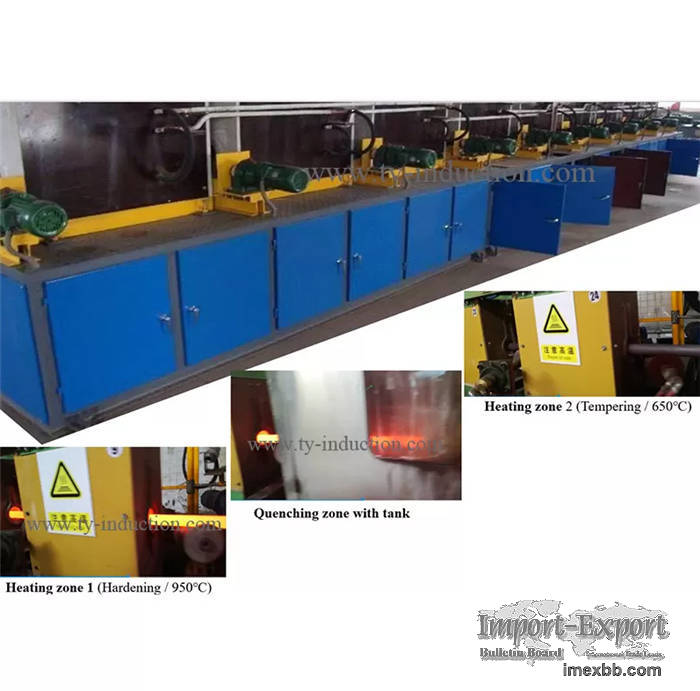

The hardening and tempering treatment is a continuous and automated process
controlled by Siemens PLC and friendly HMI. The induction heat treatment
equipment is widely used to heat treating of the bars and tubes. Normally the
hardening temperature is up to 950 ° C, followed by an abrupt cooling with
water or other quenching media. A further heating at lower temperatures of
tempering and a subsequent surface protection treatment and cooling follow
this.
The temperature of the bars/pipes is constantly controlled by infrared
thermometers located at the exit of each zone. The entire process can also be
easily controlled and operated by an operator via touch panel and buttons. With
induction heating technology, TY induction heat treatment line assures the
maximum homogeneity of mechanical and structural prosperities both in the bar
section and along in the bar length. Dimension range of bars that can be heat
treated by the line is from 10 to 120mm diameter with length from 1.5 m to
7.0m. TY Induction bar Hardening and tempering machine is fully automatic that
ensure high production capacity up to 6t/h and over.
This line mainly consists of items such as Induction Power Supply and Inductor,
Cooling System, Mechanical System, Automation and Temperature Measurement.

Minimum Order: 1 tons
