Rotary Shear Valves

Keyto multi-channel rotary shear valve can be categorized into long lifetime
model and regular model according to the service life. For long lifetime
models, medium materials in contact with the fluid include PCTFE valve head,
ceramic stator, and sapphire rotor. For the regular model, the medium materials
in contact with the fluid include PCTFE valve head, PEEK stator, and PTFE
rotor. Both the stator and rotor are corrosion-resistant and wear-resistant. If
you have any special reagent tolerance requirements, please feel free to
contact us. Keyto supports customized material.

Types of Rotary Shear Valves

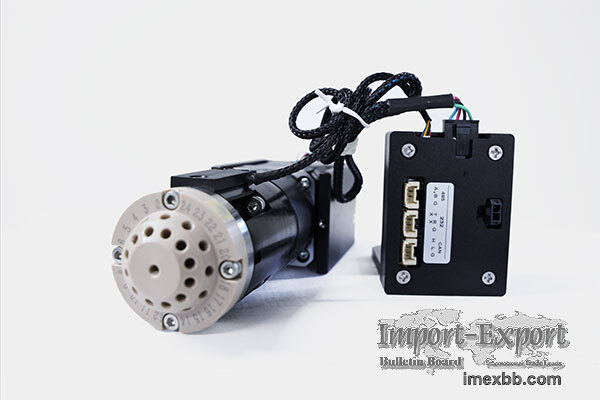

Multi-channel Rotary Shear Valve 31XX
Keyto multi-channel rotary solenoid valve can be categorized into extended
lifetime model and regular model according to the service life. For long-
lifetime models, medium materials in contact with the fluid include the PCTFE
valve head, ceramic stator, and sapphire rotor.

Characteristics of Rotary Shear Valves
01
Rotary shear valve has an integrated drive controller which controls the
operation of the stepper motor by accepting commands from the host computer.
This enables the switching of the fluid path. Three serial protocols are
available: RS232/RS485/CAN bus.

02
The rotor is made of sapphire, which is suitable for various corrosive liquids.
Valve head is made of PCTFE, which is maintenance-free.

03
A compact structure facilitates reducing the reagent residue inside the flow
channel.

04
Quick liquid switching, responsive with high accuracy.

The positioning sensor to confirm the valve position is integrated directly
into the valve and the positioning of the branch port is accurate.

Functions & Applications of Rotary Shear Valves

The functions and applications of rotary shear valves are as follows:

Keyto rotary shear valve is a new type used in the hydraulic field, especially
in connection with a multi-channel rotary cutting valve and a hydraulic system.
The utility model can reduce the diameter of the valve body and the volume of
the rotary shear valve under the same working conditions.

During its operation, the drive device drives the adapter shaft to rotate, and
the valve element assembly rotates to make the second liquid inlet channel
align with the liquid inlet through the hole on the valve body so that external
liquid can enter the valve head. The liquid inlet through-hole on the valve
body is arranged in several rows along the radial direction of the valve body,
which makes efficient use of the space of the valve body. Under the same
working conditions, the diameter of the valve body is effectively reduced, and
the volume of the rotary cut valve is reduced.

For more information about rocker solenoid and automated liquid handling
systems, please feel free to contact us!
