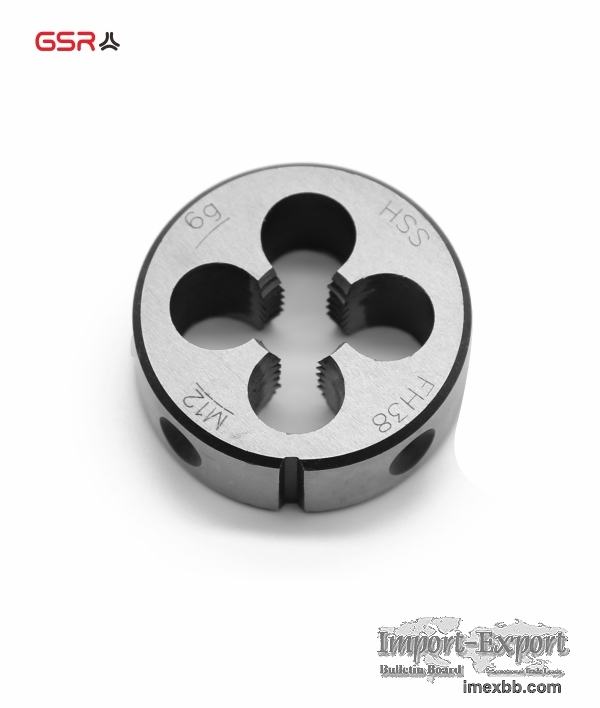

Round Die M6 M12 HSS

HSS Round Die Introduction
HSS round dies are round and usually have three or more cutting edges. They are
either used for manual use of die holders or clamped into the quill to use in a
turning lathe. The chips are discharged through the plane holes in round dies.
Round dies are used for thread processing to make external threads, such as
cutting new threads or repairing old ones, also known as hexagonal dies and HSS
round dies.

Round dies technical data
Type of thread Metric ISO-thread
Standard DIN 223 (DIN EN 22568)
Form Solid Version(Form B)
Material HSS-G/HSS-E
Tolerance 6g
HRC 61-66
Surface Bright Finished
Cutting Direction Right
Thread Angle 60°
Application External Thread Cutting

What is the round die?
Round dies are the thread cutting tools used for making external threads. They
are round and usually have three or more cutting edges. They are either used
for manual use with die stocks or clamped into the socket to use on a turning
lathe. Round dies are available slotted (style A) or closed (style B), with
closed being the most commonly used style.
