Rubber Fabric, Hypalon Fabric, Rubber Sheet Insert PLY

Rubber Fabric, Hypalon Fabric, Rubber Sheet Insert PLY

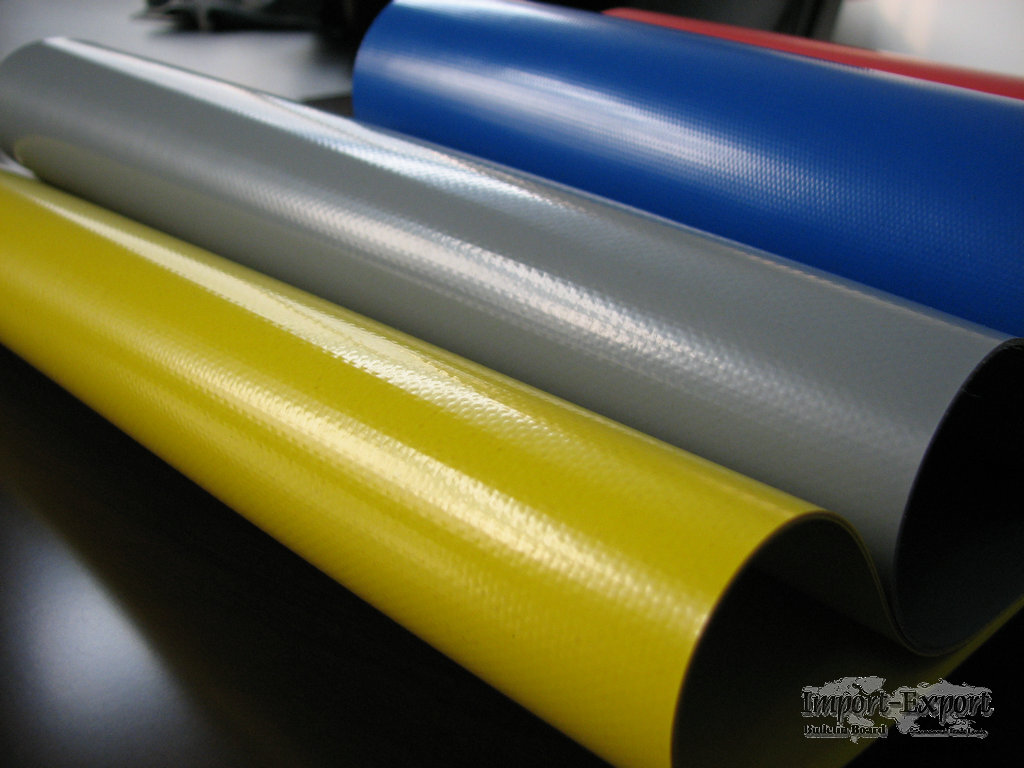

Description: the rubber fabric, rubber diaphragm are made with different
fabrics and rubber materials on special rotocure machine. Different nylon
fabric, polyester fabric, EP fabric, glassfiber fabric and aramid fabric coad
all kinds of rubber material of hypalon, nitrile, neoprene, silicone,
fluorubber etc. Hypalon resistant weather and water, rugged and yet are
lightweight and easy to handle for inflatable boats, neoprene resistant acid
alkaline, nitrile resistant oil, silicone and viton resistant high heat,
corrosion - resistant colorful coated fabrics are used for hatch and boat
covers, radomes, inflated structures, and are ideal for quality awnings,
boating garb, convertible tops and other consumer products. Apply to produce
all kinds of inflatable boats, rafts, life-float, high-speed train, bus, rubber
diaphragm, rubber gasket and other special purpose.



Specifications:

mat , erial: coated hypalon, neoprene, nitrile, silicone, fluorubber etc.

Insertion: reinforce and insert 1-3PLY cotton, polyester, nylon, glassfiber,
aramid, EP fabric

color: black, red, yellow, grey, blue, white etc.

surface: smooth or impression fabric

tensile strength: 8.0Mpa

hardness: 60-70shore A

elongation: 350%

density: 1.4g/cm3

thickness: 0.4-6.0mm

width: 1.0-1.5m

length: 10, 20, 30, 50m

standard size for NBR fabric:

0.5mm x 1.0m x 10m x 1PLY

0.8mm x 1.0m x 10m x 1PLY

1.0mm x 1.0m x 10m x 1PLY

1.5mm x 1.0m x 10m x 1PLY

2.0mm x 1.0m x 10m x 1PLY

3.0mm x 1.0m x 10m x 2PLY

4.0mm x 1.0m x 10m x 2PLY

5.0mm x 1.0m x 10m x 2PLY

6.0mm x 1.0m x 10m x 2PLY



standard size for hypalon fabric:

555dtex-500deniers-710g/sqm, 0.6mm x 1.2m x 50m, hypalon/hypalon

1100dtex-990deniers-1300g/s , qm,1.0mm x 1.5m x 50m, hypalon/neoprene,
hypalon/hypalon

1670dtex-1500deniers-15 , 00g/sqm, 1.2mm x 1.5m x 50m, hypalon/neoprene,
hypalon/hypalon

OEM & customized size are agreed

packing in rolls and pallets

***When you enquiry, pls confirm the rubber, fabric, color, size and
quantity***

Minimum Order: 2 pieces
