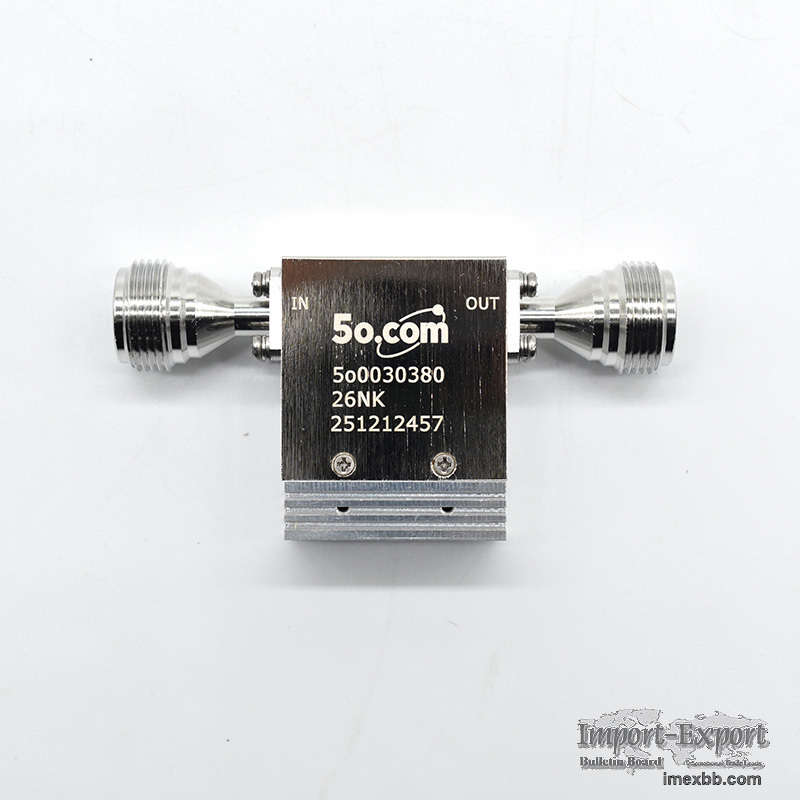

S C Band 2.0 to 6.0GHz RF Broadband Coaxial Isolator

Model Number:5o003038026NK
Frequency Range:2.0~6.0GHz
Insertion Loss:0.8dB
Isolation:13dB
VSWR:1.5
Forwar , d Power:100W
Reverse Power:100W
Connector Type:N Female
Temperature:+20 ~ +70℃
Dimension:30.5*38.5*15mm
il:1.5@2.0~2 , .5GHz 0.8@2.5~6.0GHz iso:13dB VSWR:1.5 Temp: -40~+20℃

RF power amplifier protection.
Digital, Satellite, Mobile Communication.
Medical, Communication, Security.
Military, Space and Commercial applications.

5o.com is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.

The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.

Minimum Order: 1 pieces
