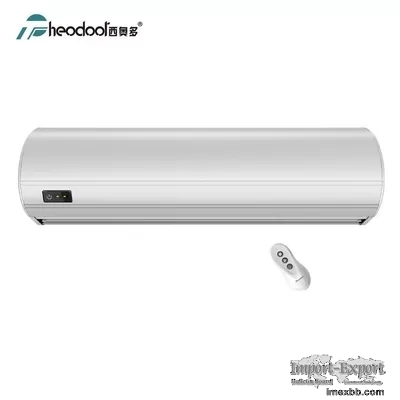

S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For

S6 Commercial Air Curtain For Supermarket, Chainstore, Shop, restaurant,
hotel...

Feature:

New fashion specialty designing, unique curve arc-shape, full aluminum body,
won’t be rusty and discoloration;
The body is without visible screw, elegant appearance;
Adopting high-performance motor, safe and reliable; using designed centrifugal
turbine with strong wind;
Touch screen with remote control, two speeds with high and low speeds
operation;
Two colors available: white, silver;
Suitable for installation in luxury hotel, supermarket chains, large stadiums
and airport terminals and other entrances of high-grade places etc;
Installation height: 2.5-3.5m or 3-4m.

Specifications:


Model

Size
(mm)

Volt./ Freq.

Input power(W)

Air flow
(m3/h)

Air speed
(m/s)

Noise
(dB)

N.W (kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509-L/Y S6

900x220x240

220v/50Hz

230< , br>
200

1100

600

13-16
,
52

49

13.5

FM-3510-L/Y S6

1000x220x240

250

220

1200

900

52

49

14

FM-3512-L/Y S6

1200x220x240

290

260

1500

1200

53

50

16

FM-3515-L/Y S6

1500x220x240

380

350

1900

1500

55

53

20.5 ,

FM-3518-L/Y S6

1800x220x240

450

420

2280

1800

57

54

24

FM-3520-L/Y S6

2000x220x240

470

440

2520

2100

28

56

27.5 ,

FM-4009-L/Y S6

900x220x240

220v/50Hz

300< , br>
270

1400

1000

16-20

57

54

13.5

FM-4010-L/Y S6

1000x220x240

320

290

1550

1100

57

54

14

FM-4012-L/Y S6

1200x220x240

400

370

1900

1500

58

55

16

FM-4015-L/Y S6

1500x220x240

500

470

2300

1900

61

58

20.5 ,

FM-4018-L/Y S6

1800x220x240

620

590

3255

2855

63

61

24

FM-4020-L/Y S6

2000x220x240

620

590

3255

2855

64

62

27























































S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 0

S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 1



S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 2

S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 3



What is Air Curtain?



Theodoor Air curtain is installed above the entryway of store, restaurant,
hotel...etc. It can effectively isolate convection indoor and outdoor and keep
temperature and humidity. Especially used in the location with air conditioner
to keep indoor environment and save energy of refrigeration equipment. In
addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes
from outside. In this way, a comfortable indoor climate is maintained.





Applications: door entrance



Business Organizations Supermarket, largescale shopping malls, chain shops,
department store, star-rated hotels, restaurants;
Public Places
subway, airports, stations, bookstores, exhibition halls, stadiums, museums,

commercial buildings, hospital;

Entertainments Movie theaters, clubs, bars, cafes, Internet bars, beauty
shops.


S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 4



Company Information


PRECISION PRODUCTION

Founded in 2002, Theodoor is located in Guangzhou innovation and development
new area—Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square
meters. We have modern production workshop, applying the most advanced
industrial equipments and detecting instruments to provide product
manufacturing precision and stability of extremely reliable guarantee. Theodoor
has full series products which meet different customized demand in different
countries or areas.



INNOVATION TECHNOLOGY

With consecutive creation and innovation, Theodoor has built up national
standard environmental simulation laboratory as well as air curtain long-time
running laboratory. What’s more, Theodoor has accessed national invention and
other patents more than 80 items, leading the quality and performance of
product upgrading in the industry. Theodoor and the products had passed
ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA
certifications etc.



S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 5

S6 Centrifugal Fan Air Curtain Over Door 0.9m/ 1m/ 1.2m/ 1.5m/ 1.8m /2m For Air
Conditioning Room Saving AC Energy 6



FAQ

What's the main functions of Air Curtain?



1. Dust-proof, insect prevention

2. Isolate the smell

3. Energy saving

4. Comfortable heating



How to select suitable air curtain?



There are many factors that we have to consider when selecting an air curtain,
some of which are listed below:

1. Application

2. Door height

3. Door width

4. Outside wind

5. Building static pressure

6. Door structure

7. Ambient temperature

8. Air curtain size

9. Air curtain design and look

10. Noise level

11. Power consumption



Why choose Theodoor Air Curtain?



Quality: High quality performance, more than 18 years manufacturing.

Design: Fashion and utility. More than 100 models air curtain, suitable for
different environments.

Reliability: Lifetime testing lab in the factory. Enable long life time
operation, continuous working 5000 hours without default.

Engineer: Professional R&D and engineer teams focus on Air curtains.

Machinery & technology: Advanced mould machines and equipments ensure products
performance and reliability.

Materials and Quality: At every stage, from raw materials to the end products
we insist on results: safety, efficiency, energy conservation and environmental
protection, and our rigorous testing ensures that we reach standards higher
than similar products. We want consumers to depend on the precision and
reliability of our Air Curtain machinery.

Quality control: 100% product performance testing.

Cost saving: We provide long-life and high reliability air curtains with
excellent quality and better performance, resulting in increased cost saving.
