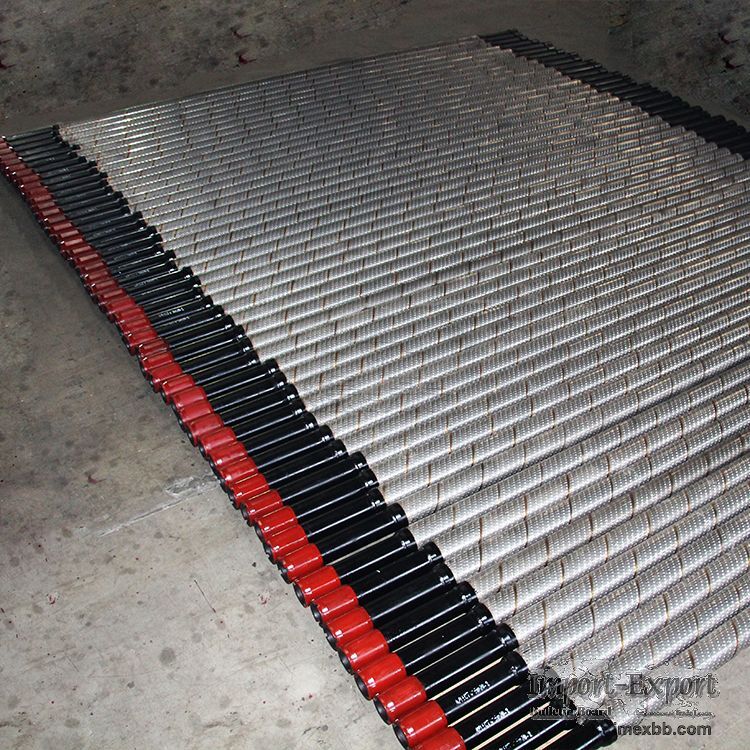

Sand Control Screen

Sand Control Screen（Bridge Slotted Screen):
Sand Control Screen is composed of central tube, precise punched slotted
screen jacket and stainless steel wire ring. It has characteristics such as
exquisite controlled holes, high percentage of open area, strong integral
strength, strong resistance to deformation, excellent resistance to
corrosion and high reliability etc .
Bridge Slotted Screen Features:
The Jacket tube is made of stainless steel wire mesh or punching spiral
welded pipe in stainless steel plate or stainless steel  V- shaped wire
welded pipe. The base pipe is made of casing pipe or oil tube with API
standard. Meanwhile using J55 or N80 petroleum casing pipe for body
processing makes the perforated pipes have the properties of high strength
and deformation resistance.
Driling evenly smooth with no burr.
Whole anti-corrosion treatment to form a dense protective layer on the
surface improves the corrosion resistance and wear resistance of the
screens, which can effectively extend the life of their under ground work.
Simple to operate, convenient to use, Large inner drift diameter, easy to
carry out pipe string configuration.
The scope of products : Hengying Screen can be used for casing completion
and liner completion of vertical wells, inclined wells and horizontal wells
etc.and it can be used for various oil wells, gas wells and water wells. It
can be used as sand control colonnade individually and it can be used in
gravel packing.
Note :The length of base pipe and the diameter and the slot of screen can be
changed as per customer’s requirement.
