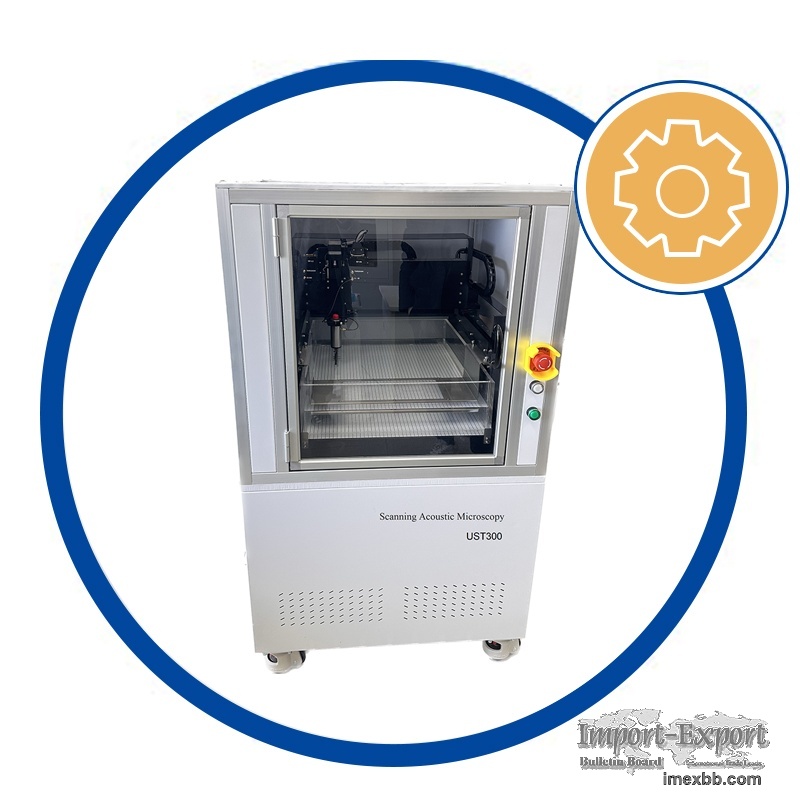

Scanning Acoustic Microscopy -UST300

Scanning Acoustic Microscope is developed for inspection of the
internal defect location, size and distribution in the semiconductor
packages or materials using high frequency ultrasonic waves. It is very
sensitive to bonding layer, so it can discover air holes, flaws,
impurities and delaminations, etc. Scanning Acoustic Microscope is a
kind of non-destructive device which can display waveforms and high
resolution images of the inner of inspected objects, and can reserve
small defects lost in destructive inspection. The inspected objects can
be used unceasingly. UST300 Scanning Acoustic Microscope is mainly
applied in the field of failure analysis, reliability analysis, process
control, quality control, product development, process improvement,
etc.
Main Features
 Smartscan Powerful SAM software –Smartscan, Chinese and English
interface, lifetime free software upgrades.
 Scanning axis is made of linear motor, closed-loop control, high
speed and precision, low noise.
 Separating type ultrasonic transmitting and receiving system,
equipped with signal pre-amplification
device, low, high-pass filter, to ensure good signal quality.
 Wide variety of transducers, frequency range from 5MHz to 300MHz.
 Inspect mode: A, B, C, Body, Trassmission, Multi-layer, Offline
scan,JEDEC tray scan,etc.
Defect size and area statistics, automatic calculation of the
percentage of defects in the measurement area.
C Scan image peak, positive and negative peak image, phase reversal
image and pseudo color images in real
time to switch, easy to analyze the device defects from different
angles.
 Multiple detection results windows can display at the same time, and
can be reanalyzed;
For
more:https://www.orientalind.com/ProductsDetai ,
l/scanning%20acoustic%20m
icroscope

Minimum Order: 1 sets

Click to Enlarge
