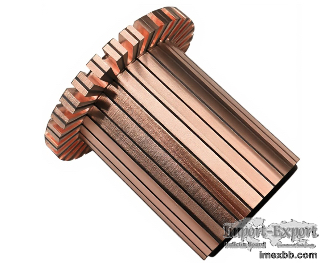

Segment Commutators for Power tool

Product Overview
Our Riser Commutator (Slot Type) is a precision-manufactured core
component designed for high-performance DC motors, universal motors,
and traction motors. Engineered with high-purity copper segments and
reinforced insulation, this commutator ensures stable electrical
contact, minimal sparking, and long service life in demanding
industrial applications. The riser (slot) design allows secure winding
connections, making it ideal for motors in power tools, automotive
systems, and heavy-duty industrial equipment.
Key Features
High-Conductivity Copper Segments: Made of oxygen-free copper for low
electrical resistance, efficient current transfer, and reduced power
loss.
Riser/Slot Design: Precisely machined slots enable firm and secure
winding connections, preventing loose wires and ensuring reliable motor
operation.
High Mechanical Strength: Reinforced insulation structure delivers
excellent dimensional stability, even under high-speed rotation and
temperature fluctuations.
Low Sparking & Wear: Smooth, precision-machined contact surfaces
minimize brush wear and sparking, extending the service life of both
the commutator and brushes.
Wide Compatibility: Available in various outer diameters, bore sizes,
and segment counts to match different motor specifications and
applications.
High-Temperature Resistance: Insulation materials withstand continuous
high-temperature operation, ensuring long-term reliability in harsh
environments.
Applications
This slot-type riser commutator is widely used in scenarios requiring
high power density, stable electrical performance, and long service
life, including:
Automotive Industry: Starter motors, wiper motors, window lift motors,
and cooling fan motors for passenger cars, commercial vehicles, and
electric vehicles (EVs).
Power Tools: High-speed motors for electric drills, angle grinders,
circular saws, and impact wrenches, where high rotation speed and
frequent start-stop cycles are required.
Home Appliances: Vacuum cleaner motors, blender motors, washing machine
drive motors, and hairdryer motors, offering stable performance in
continuous operation.
Industrial Motors: DC motors for conveyors, pumps, fans, and industrial
automation equipment, suitable for heavy-duty and continuous-duty
working conditions.
Traction & Mobility Equipment: Motors for electric forklifts, golf
carts, small electric vehicles, and material handling machinery, where
high torque and reliable commutation are essential.
Specialized Equipment: Medical devices, aerospace auxiliary motors, and
precision instruments requiring low noise, low sparking, and high
reliability.Riser Commutator Slot Copper Commutator for DC Motors

For more:https://china-commutator.com.cn/product/riser , -commutator-slot-
type-high-performance-dc-moto , r-commutator/

Minimum Order: 10 pieces
