SELL 7500W Twin Tube Medium Wave IR Lamp

Fast Medium Wave Twin Tube Infrared Heat Lamp

Fast response medium wave infrared lamp can be switched on/off the same as short
wave lamps in a short time, and the range of IR radiation wave is 1.4-2.0μm. The
especial fast medium wave can heat the surface and thin layers quickly. Fast medium
wave lamps can be made in all lengths up to 6 meter long. The twin tube designed
lamps are stable and its high power density lamp can transfer high energy to the
long material.

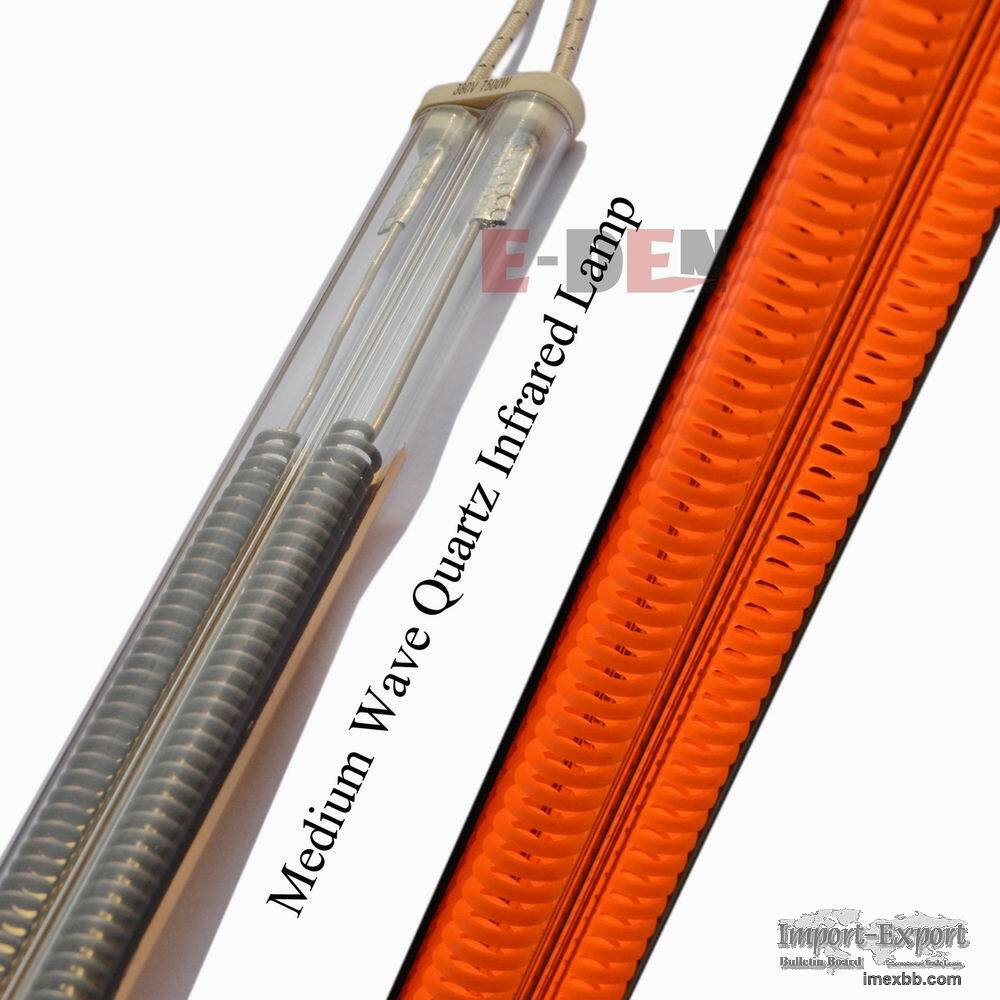

Twin Tube Fast Response Medium Wave Infrared Lamp / IR Quartz Emitter
Peak wavelength 1.4-2.0μm
Response time 1-2 seconds
Heating Filament Tungsten Alloy
Filament working temperature 1200-1800ºC
Max. surface power density 300kw/m2
Average working life (normal using conditions) >5000 hours
Quartz Twin Tube 23×11mm 33×15mm
Max. Length 4.5m 6.0m
Reflector Ceramic or Gold Ceramic or Gold
Burning position Horizontal or Vertical Horizontal or Vertical


Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and
trading company established in 2011, specialized in producing infrared heating
lamps and providing IR heating solutions. Our customers spread all over the Euro-
Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada,
Russia and other dozens of countries. We also offer OEM/ODM manufacturing service
for our customers all over the world. We can design and produce infrared heating
lamps or heaters according to your requests. We manufacture singe and twin tube IR
heating lamps in short wave, fast response medium wave, carbon medium wave and
medium wave. Base on reliable quality and honest reputation, our IR products pass
the ISO 9001 international quality certification and CE safety certificate. We
always do our best to provide our customers highest quality products and most
satisfactory after-sales service.

Minimum Order: 2 pieces

Click to Enlarge
