Shear Stud

Shear stud is a type of fastener specifically designed for welding connections
in steel structures, typically made of low-carbon steel or low-alloy steel. It
is cylindrical in shape, with a nail head at one end and a welding end at the
other (mostly flat or with an arc initiation structure).
Specification
Standard GB10433
ISO13918
AWSD1.1-1.4
Size
Diam , eter (length) M10,M13(40-120)
M16(40-150)
M19(40-210)
M , 22,M25(70-225)
Material Q195
ML15
SWRCH18A
Surface treatment phosphating
Production process Raw materials entering the factory - phosphating -
drawing - cold heading - riveting - inspection - packaging
Package 25kg/box or bag
Remarks ML15:The tensile strength is more than 350mpa,the yield strength is
more than 230mpa
SWRCH18A:The tensile strength is more than 450mpa,the yield strength is more
than 350mpa

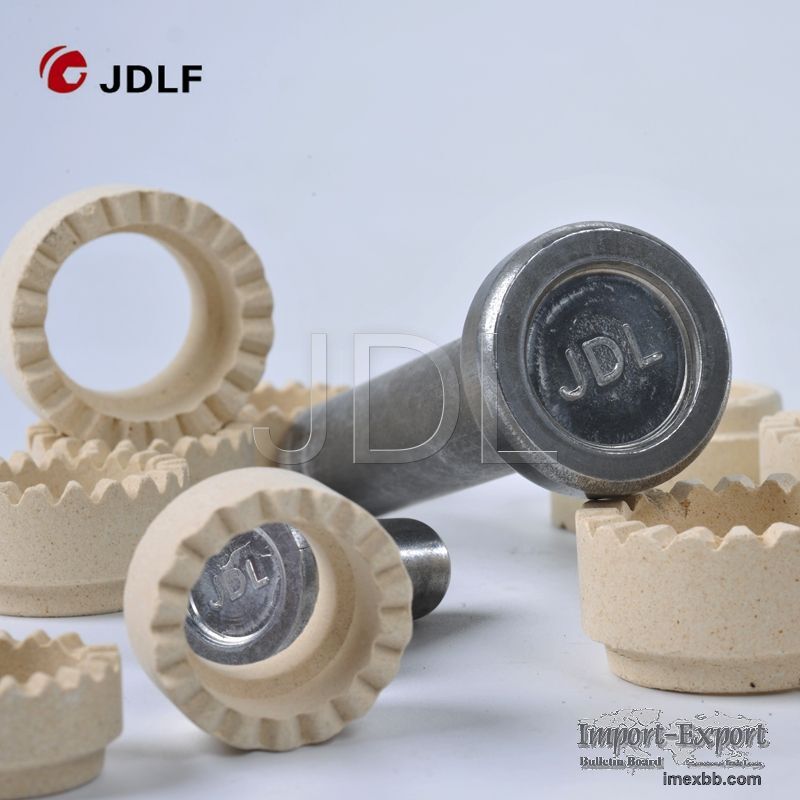

Shear Stud
Enlarge Click to Enlarge
