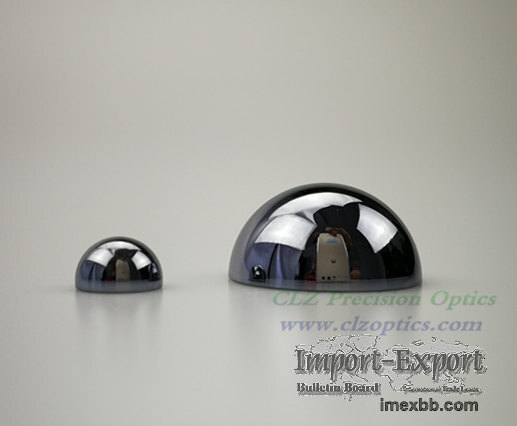

Silicon windows and Silicon lenses for Infra-Red Imaging Systems

Silicon windows and Silicon lenses for Infra-Red Imaging Systems
Product Description
Infrared lenses are lens assemblies optimized for light processing in the
infrared region, including near-infrared, short-wave infrared, mid-wave
infrared, and long-wave infrared. IR lenses are optical lenses that use
specific substrates or anti-reflective coatings to maximize performance for
applications above 700nm including thermal imaging, FLIR or spectroscopy.
The single crystal of silicon used in semiconductors has low absorption in the
infrared wavelength of 1.2 - 7μm and it can be used as an optical element of
infrared light.
Silicon (Si) is a hard material and has good transmission in the IR bank, it
is a good choice to make IR windows to protect other elements of lens systems.
Silicon optics are used in a variety of infrared applications operating in the
1.2 - 7μm wavelength range, including near infrared imaging or infrared
spectroscopy. Silicon's low density (2.329 g/cm 3 ) is ideal for weight-
sensitive applications. Silicon has a Knoop hardness of 1150, which
makes Silicon Lenses harder and less brittle than comparable germanium
optics.
And refractive index of about 3.4975 at 1.357µm through to 3.4176 at 11µm, it
is a good choice to use in broad-spectrum thermal imaging systems. Sometimes,
the Si lenses will be used with Ge and ZNSE in the optical systems to form
well-corrected.
We use our expertise to design and manufacture high-performance IR Optical
Lenses and assemblies for our customers.
