Slide Switch Sk-23D02-Eg5 Horizontal Slide Switch 2p3t DC Slide Switch

Product Details
Model Number:SK-23D02-EG5
Brand Name:MMT
Origin:China (mainland)

Key Specifications/Special Features:

Rating: 50V DC, 0.3A
Function: 2P3T
Timing: Non-Shorting
Contact resistance: 100mΩ max
Insulation resistance: 500V DC/100MΩ min
Dielectric strength/withstand voltage: 500V AC
Operating force: 250gf±100gf
Terminal strength: 300gf
Displacement of actuator(knob): 1000gf
Life: 10000 cycles
Operating temperature: -16ºCto +60ºC


Shipping Information:
FOB Port:China (Mainland)
Lead Time:14 - 20 days
HS Code:8536.50.00 00

Minimum Order: 10000 pieces

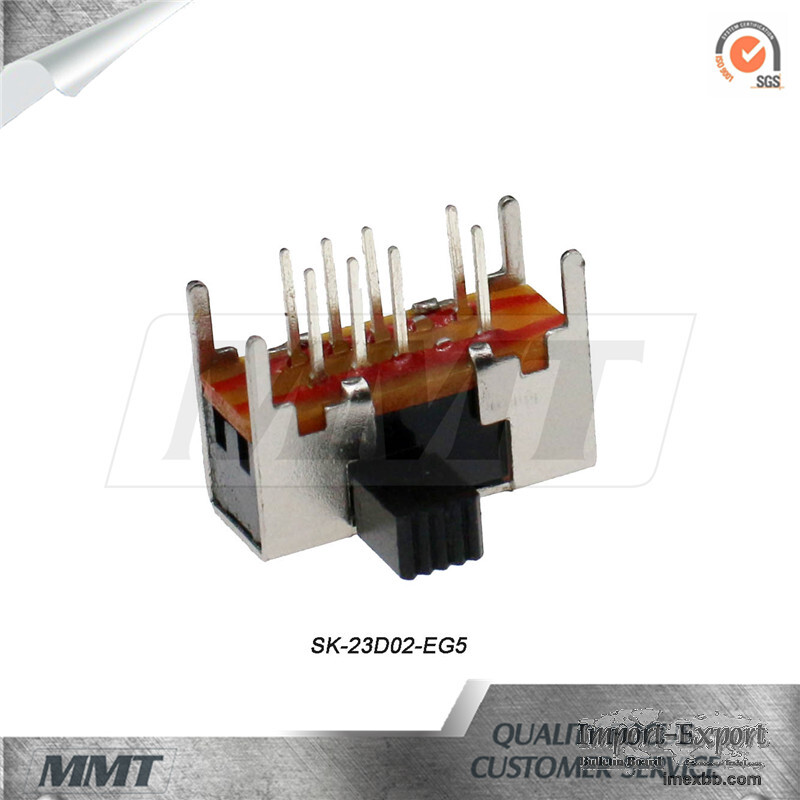

Slide Switch Sk-23D02-Eg5 Horizontal Slide Switch 2p3t DC Slide Switch
Enlarge Click to Enlarge
