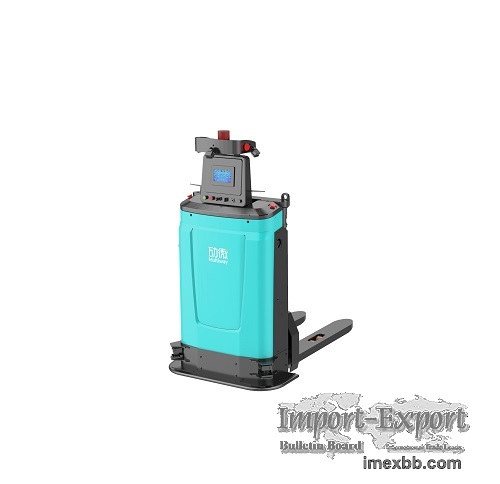

Slim Pallet Truck AGV

Multiway Robotics is an advanced manufacturer of intelligent logistics
solutions in automatic pallet truck AGV. Slim pallet truck MW-ST10, designed
for narrow aisle handling. The vehicle body is small, and it is widely used in
horizontal handling and cargo handling in workshops or warehouses with various
agvs pallet trucks operations.

Specifications of MW-ST10 Slim Pallet Truck AGV

●Standard ○Option
Standard Models MW-ST10
Slim Pallet Truck AGV
Navigation Laser+Reflector Navigation ●
LiDAR SLAM Navigation ○
Hybrid Navigation (LiDAR/Laser Reflector+QR Code/Magnetic
Spots/Ceiling) ○
Communication Wireless Wi-Fi ●
Optical Communication ○
5G ○
Specifications Payload (kg) 1000
Max Lifting Capacity (mm) 210
Weight (kg) 520
Dimensions LxWxH (mm) 1570x845x2300
Motion Motion Forward, Reverse, Turning
Speed (Empty-load/Full-load) (m/s) 1.38
Positioning Accuracy (Bearing wheel center) (mm) ±5
Climbing Capability (mm) ≤3° (5%)
Battery Charging Mode Manual/Auto
Battery Replacing  Assembly
Type Lithium-Iron
Voltage (V) 24V
Capacity (Ah) 110/150Ah
Operation Time (h) 4-5h
Charging Station 24V100A

If you want to buy our autonomous mobile robots, please contact us.
