Slotted Rail Terminal Energy Absorption Systems

Slotted Rail Terminal Energy Absorption Systems
Product Description
The energy-absorbing terminal systerm designed by Dachu has been continuously
optimized, which is of substantial help to avoid or reduce the severity of the
accident of hitting the end of the guardrail.
Rail Terminal Energy Absorption Systems are designed to absorb and dissipate
energy during collisions or sudden impacts. The unique slotted rail design,
combined with energy-absorbing materials, ensures a controlled and effective
response to impact forces.
The upright post at the end part is bent, deformed and bent. The column at the
energy-absorbing end is usually of the Breakaway Type, which can absorb impact
energy and bend in case of impact, especially for the column that can enter the

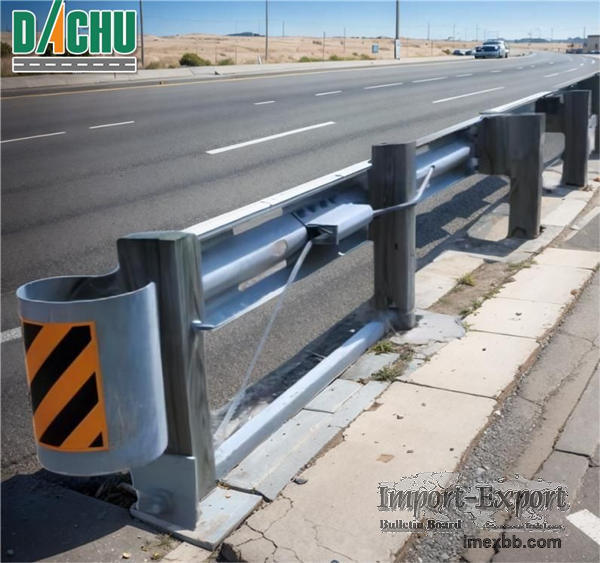

portal system. The SRT (Slotted Rail Terminal) shown in the figure below is a
typical example, which is a non-redirective (Gating End Terminal). When the
vehicle hits the end of the guardrail (T1, T2, T3), the first column will be
bent, and the original cable will be relaxed immediately, so the tensile
strength of the beam at the end can be released instantaneously.
