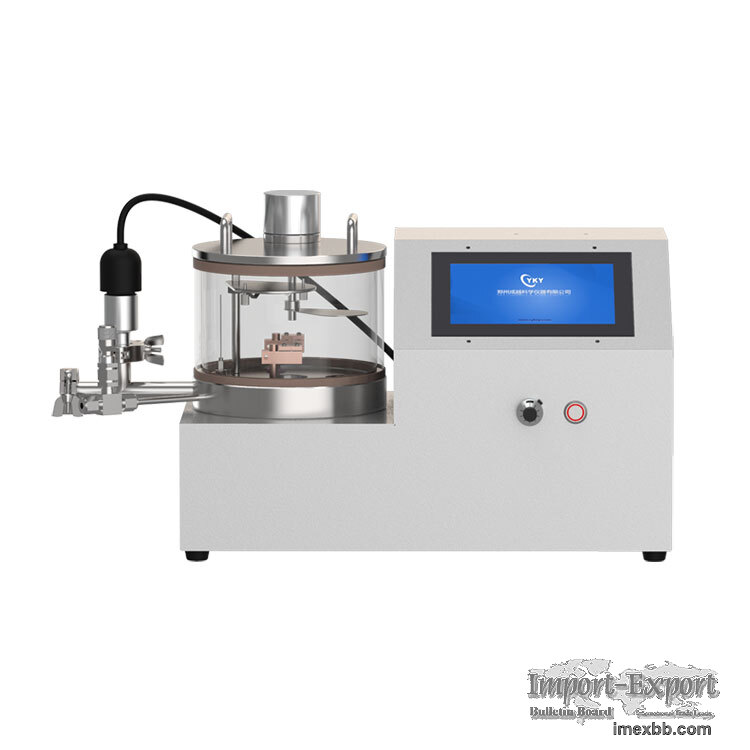

Small Vacuum Thermal Evaporation Coating Machine for Glove Box

Small Vacuum Thermal Evaporation Coating Machine for Glove Box CY-EVP180G-GLV

This small thermal evaporator can be used for vacuum evaporation deposition coating
and the coating current can reach up to 100A. This type of small evaporation
coating instrument has a wide range of applications and can prepare various metal
thin films and some non-metal thin films, so it is widely used in electrodes and
organic light emitting LED preparation. The instrument has a small size and a
miniaturized design, which can effectively save laboratory space. It is specially
designed for use in a glove box; it is simple to operate and has strong
adaptability to different materials, making it very suitable for laboratory
purchases.

Characteristics:
1. Quartz chamber, easy to clean and put in samples;
2. Tungsten wire basket or tungsten boat is the heating source, the highest
temperature can reach 1700℃;
3. Inert gas can be introduced into the vacuum chamber to clean the chamber, or
reactive gas can be introduced to perform reactive evaporation coating.
4. The air inlet is equipped with a needle valve to adjust the air flow.

Technical parameter
Supply voltage AC220V，60Hz
Max power 1000W
Sample stage Diameterφ60mm；
Quartz chamber O.Dφ180mm x I.Dφ166mm x 100mm
Evaporation source Tungsten basket/tungsten boat
Max temperature 1700℃
Thermocouple B-type,working temperature 200℃~1500℃
Vacuum gauge Resistance type vacuum gauge
Vacuum interface KF16
Inlet interface φ6.35mm Bite type fittings
Vacuum pump No, the customer provides it
Dimensions 330x250x580mm

Minimum Order: 1 sets
