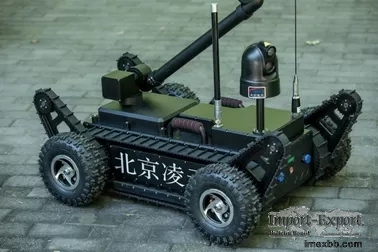

Smart Counter Terrorism Equipment X Ray Bomb Defusing Robots 80kg Weight

Product Description

Bomb Defusing Robots Introduction
ER3 EOD robot has changed the traditional robot can only grab the drawbacks,
achieved the X-ray inspection, capture, explosive disrupt of integrated EOD
operations, greatly facilitate the on-site disposal personnel.
Equipped with 360 ° panoramic image system, 360 ° monitoring no dead ends, with
panoramic software will be 4-way camera image splicing into a panoramic view, easy
to control the robot robot;
The system uses a full terrain structure, front and rear double swing arm and track
can cope with almost all complex terrain, 2 × 2 tires to ensure high-speed walking
deployment to promote performance.
High torque 6 degrees of freedom exhaust robot can achieve any angle of rotation,
you can snatch 10KG weight, arm load explosives destroyer, can operate field
destruction of explosives; chassis with all terrain structure, can adapt to a
variety of terrain rapid combat deployment.
ER3 EOD robots can be used with a variety of accessories, including disruptor (eg
22mm), X-rays (such as LT-Xi), remote detonation control systems for explosives.



Bomb Defusing Robots Features
1. achieved the X-ray inspection, capture, explosive disrupt of integrated EOD
operations

2. use of front and rear 4 swing arm + track + tire structure, the tire can be the
most effective way to improve the forward speed, crawler and swing arm for complex
terrain, can improve the barrier performance;

3. High torque 6 degrees of freedom exhaust robot can achieve any angle of
rotation；

4. Equipped with 360 ° panoramic image system, 360 ° monitoring no dead ends；

5, capture weight of 10kg；

6. The robotic arm is equipped with explosives disruptors, sighters, capable of
destroying explosives on site；

7. Applicable to carry portable X-ray machine and adapter bar；

8. Wired and wireless control, in the interference environment using wired
control；

Bomb Defusing Robots Specification (key elements)
function: apply X-ray inspection, capture, explosive disrupt in one.
system components: the EOD robot, portable X-ray machine, adapter operating rod,
22mm water jet disruptor

structure type: the use of front and rear 4 swing arm + track + tire structure, the
tire can be the most effective way to improve the forward speed, crawler and swing
arm for complex terrain, can improve the barrier performance.
Explosive Destroyer: Robot parts are equipped with explosives disruptor, and
sighters.
equipped with portable X-ray machine and adapter joystick:
control mode: wired + wireless, equipped with 50 meters control line, can be in the
frequency of interferometer open state, the normal work.
equipped with EOD robot adapter bar, better to meet the long distance no one
operation
equipped with 360 ° panoramic image system, 360 ° monitoring no dead ends, with
panoramic software will be 4-way camera image splicing into a panoramic view, easy
to control the robot robot

Robot arm specification:

Front arm:0-360°

Middle arm:0-150°

Big arm:0-180°

Chassis:±90°

Crawler:3 , 60°(continuously)

Open range:0-200mm

Image system specification:

Pixel:1080P

Manipulat , or specification:

snatch force:≥10KG

Explosive disruptor specification:

size:406*53*53mm

weig , ht:3.2KG

Ejector OD:53mm

Ejector caliber:22mm

Breakdown ability:wood 70mm；steel 3mm

Exploder OD:29mm

Exploser length:117mm

Running system specification:

tyre diameter:250mm

Climb ability:≥30°

Stair climb ability:≥30°

Obstacle crossing height:250mm

Maximum speed:≥1.2m/s

Radius of turning circle:autochthonous rotation

X-ray and operation bar specification:

Image plate size:383mmx480mmx15mm

Image plate thickness:less than 15mm

Image plate weight:less than 3.2kg

Pixel size:160μm

Radiation source size:310mmx50mm

X-ray breakdown ability:50mm aluminium plate

Light source:wire and wireless control available

Synchronization method:manual control(13)wire communication:compatible of 100M
Ethernet and gigabit Ethernet(GbE).

Communication:GbE

Pro , tection material:high strength carbon fiber plate

Control unit specification:

Box:protective housing；

Display screen:12inch high light LCD screen；

Image display:360°panorama image system；

control:bar control of crawl,button control of swing arms；

Battery:rechargeable lithium battery,working 3-5hrs,display of current battery
level；

Level of protection:IP65.

Wire control distance:100m

★wireless control distance:500m

Physical performance:

Size:860*700*650mm(including PTZ) weight:80KG

Battery:

Voltage:24V Operation time:≥12h

Delivery list:

ER3 EOD robot 1pcs

Control box 1pcs

Robot charger(25.2V) 1pcs

Remote charger(12.6V) 1pcs

Wire coil 1set

Portable X-ray machine 1pcs

Adaptable action bar 1pcs


certification

Passed the quality test and issued test reports by Testing Center for Quality of
Security & Police Electronic Products under the Ministry of Public Security of
P.R.China

manufacturer right as principal

Register fund equals to 6million US dollars, obtain ISO9001system certification and
ISO14001Environment management system certification
