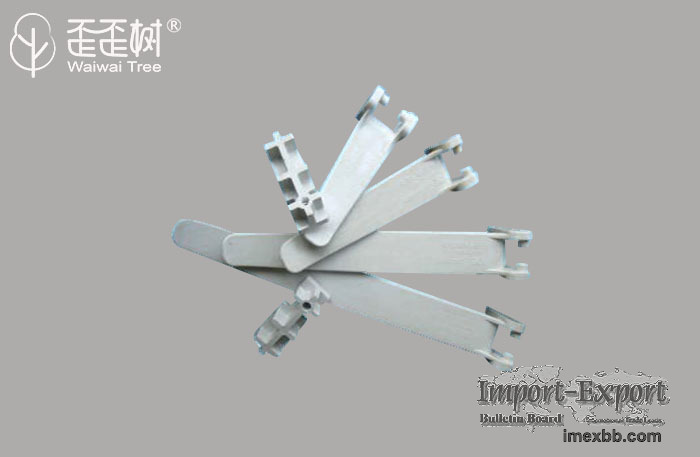

SMC Cable Braket

The SMC cable bracket is a combination consisting of a cable bracket, a post
and a fixed pin. The material of the column and the pin is also made by the
high temperature pultrusion of the FRP composite. The column can be
arbitrarily cut length according to the needs, the height of the layer is
adjusted, and the assembly is free. The cable bracket has various
specifications to meet different lengths and load requirements.

Light weight, high strength, aging resistance, UV protection, more
importantly, 1 mm can withstand voltages above 10,000 volts, it is a good
insulation material.

Features: high insulation, chemical resistance, high fire resistance, good
water resistance, accurate size, stable working performance, light weight,
high strength, acid and alkali resistance, waterproof, moisture-proof.

SMC Cable Braket Specification

Project SMC Cable Braket Galvanized angle bracket
Density (g/cm3) 1.80 7.85
Specific strength 167 90
Corrosion resistance (80°/100h) 0.012 0.023
Insulation strength (kv/mm) 14.0 Conductive
Flame retardancy meets the FH-1 --
Water resistance (%) 0.11 --
Corrosion resistance Corrosion、acid、alkali、salt resistant Corrosive,
easy to rust
insulation insulation Conduction
Mechanical strength Top force 2.5kN deflection 1.0cm Top force
2.5kN deflection 1.2cm
Lateral force 0.5kN Top horizontal offset 7cm Top horizontal
offset 7cm
Weight light weight
Eddy current effect (loss) no Large loss
Manufacturing process is difficult easy Many processes and long
cycle
Cable outer sheath scraping test No visible damage There is a
little visible damage
Raw material Cheap, resource-rich More expensive, partially imported
Maintenance Free maintenance 5-7 years need to be repaired once
Installation process is difficult or easy Short time and easy to
install Long time, difficult to install
Use life 30 years 10 years

Our bulk molding compound process and bmc composite has a wide range of
applications: differents of auto parts, different kinds of motors, Battery
box and high voltage box ,building materials, electrical appliances, Energy/
power generation, etc.
