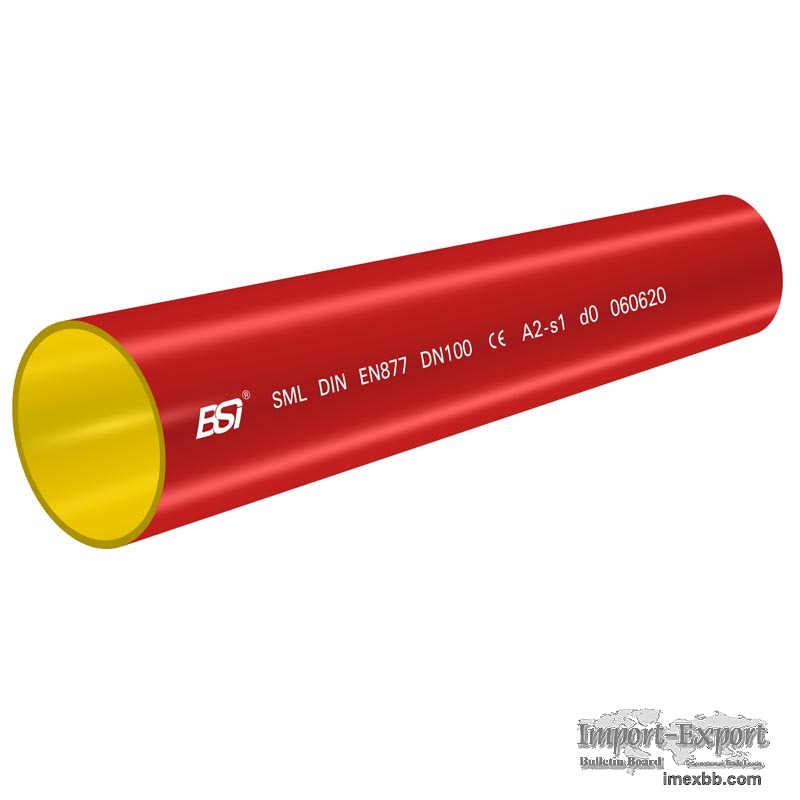

SML DIN EN877 Epoxy Pipes

Product Description of Quality DIN EN877 PIPE
Cast Iron Pipe conforming to DIN19522/EN877/BS EN877/ISO6594 Material:Cast Iron
with flake graphite
Qualilty:GJL-150 according to EN1561
Coating: SML,KML,BML,TML Size:DN40-DN300
N External diameter DE(mm) Wall thickness (mm) T Unit weight
Length L
Nominal value Tolerance Nominal value Minimum value kg/pc
(mm)
40 48 　+2  -1 3.0 2.5 12.90 3000+/-20
50 58 3.5 3.0 13.00
70 78 3.5 3.0 17.70
70 75 3.5 3.0 17.70
75/80 83 3.5 3.0 18.90
100 110 3.5 3.0 25.20
125 135 　+2  -2 4.0 3.5 35.40
150 160 4.0 3.5 42.20
200 210 　+2.5  -2.5 5.0 4.0 69.30
250 274 5.5 4.5 99.80
300 326 6.0 5.0 129.70
