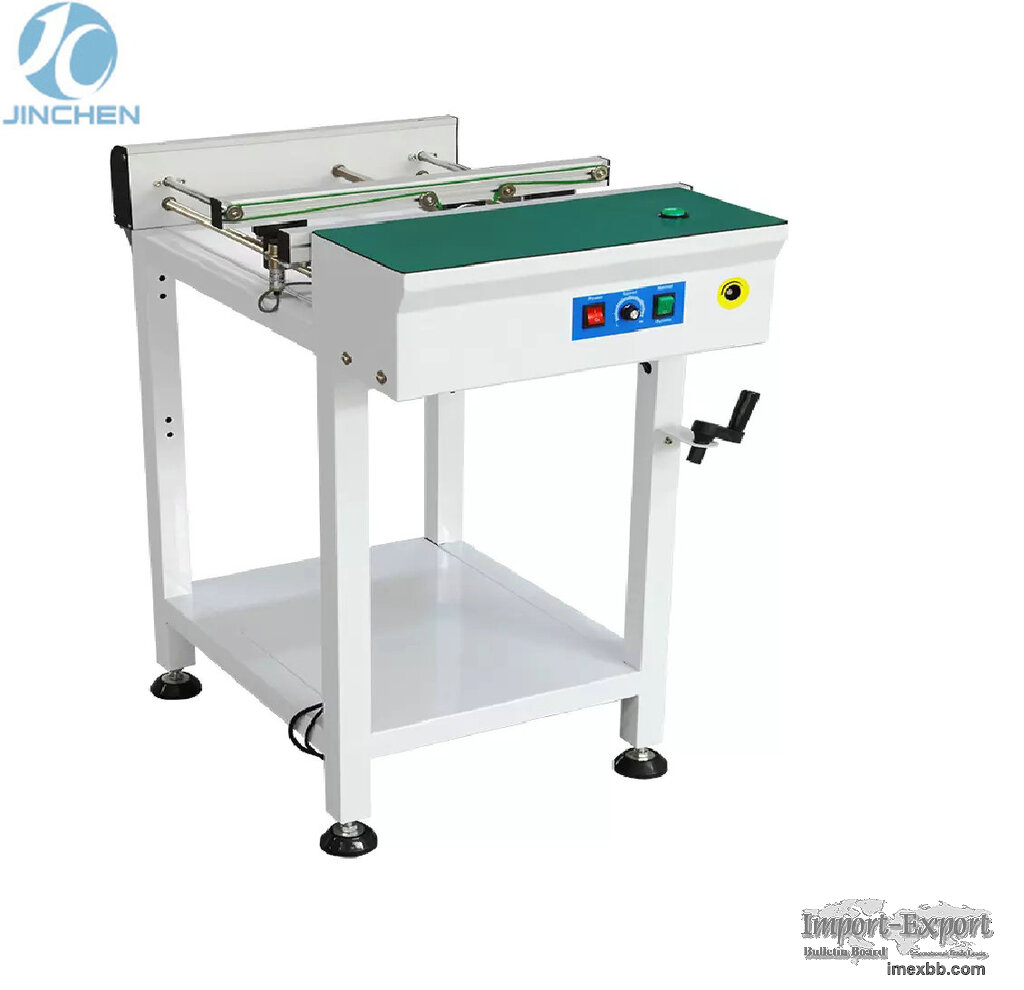

SMT Assembly Line 500mm 800mm 10000mm PCB SMT Conveyor

SMT assembly line inspection station 800mm PCB conveyor BC-080M-N

1. Modular design, according to customer demand matching removable

2. Sturdy structural design improves the stability of the equipment.

3. smooth parallel ball screw adjustment method

4. Variable speed control function

5. With circuit board detection mode (board board function)

6. The use of special transmission rail aluminum slot design to prevent the card board

7. The bottom of the increase design, not easy to shift

8. Can be customized according to customer requirements machine length

9. Compatible SMEMA interface



SMT Conveyor short-length SMEMA-compatible transfer conveyors are used for equipment linking, visual
inspection, manual assembly, and PCB buffering functions. Their advantage is the short length, which
allows them to be placed anywhere when you have space limitations. the front rail is stationary while rear
rail adjusts to desired width with a hand crank. When the conveyor is idled, boards can be removed and
inspected on the work ledge adjacent to the front rail, which will come covered with a green ESD surface.
Made by aluminum and steel, it gives a professional look. We also have under demand, better-looking
versions made with aluminum finishings, for a higher aestetic impression.

Specifications
Description This equipment is used as an operator detection workbench in the SMD production line or
in the PCB board assembly line
Board size (mm) 50 x 50 ~ 445 x 350
Working height (mm) 900 ± 20 (std)
Transmission speed 1-12 meters per minute or as your specified
Power Supply AC220V/50/60HZ
Machine dimensions 800(L) x 665(W)x 920(H)
MachineWeight (KG) 75
Power Maximum 100 volts
Belt Type 4mm flat belt
Transport Direction Left to right or as your specified
Light With lights and no lights, optional
The commonly lengths 0.8M


Thanks
zoey@jinchensmt.com

Minimum Order: 1 pieces
