SMT PCB Buffer

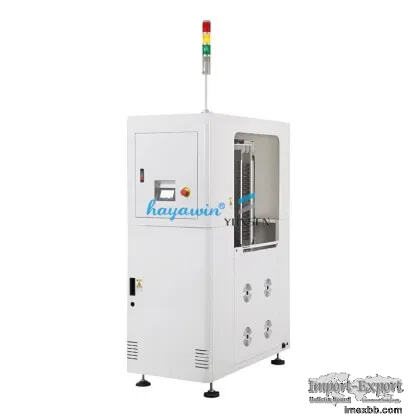

HY-460BF SMT PCB Buffer
SMT PCB Buffer Description
Hayawin PCB Buffer are components that are used to isolate or buffer signals
in a circuit board. They are commonly used to protect sensitive components from
noise or to isolate different sections of a circuit. SMT PCB buffers are
typically used in high-speed or high-frequency circuits, where they can help to
reduce crosstalk and improve signal integrity. They are available in a variety
of sizes and configurations to suit different applications and can be used in a
wide range of electronic devices, including computers, smartphones, and other
consumer electronics.

Hayawin PCB Buffer Features and Benefit
● Behind master device, as a buffer when the line speed is not coordinated.
● Behind the oven for buffering and cooling, preventing the board stuck inside
the oven
● 20 slots made by aluminum alloy for storing boards, 3.5mm flat belt
transferring.
● Panasonic PLC controller with various options
● Buffer with FIFO, LIFO, close-in first out and pass-through modes selectable
● Selectable pitch setting: 25, 50mm
● Enclosed construction to improve level of safety
● TFT touch screen, easy to operate
● SMEMA compatible

Hayawin PCB Buffer Specifications
Dimension: L600*W1240*H1800mm
Min PCB size: L80*W50mm
Max PCB size: L480mm*W460mm
Transport height: 920±30mm
Transfer direction: Left to right or right to left
Interface: SMEMA
Cycle time: Approx.15 Seconds
Pitch distance: 25,50mm
Max Buffer capacity: 20pcs
Power supply: 220V 50HZ
Air supply: 0.4～0.6Mpa
Power voltage: 800W
Board thickness: min 0.4mm
Pitch select: 25,50mm

Applications of Hayawin PCB Buffer
Isolating sensitive components: SMT PCB buffers can be used to isolate
sensitive components, such as voltage regulators or analog-to-digital
converters, from noise and other interference.
Buffering signals: SMT PCB buffers can be used to buffer signals, which can
help to reduce crosstalk and improve signal integrity in high-speed or high-
frequency circuits.
Protecting inputs: SMT PCB buffers can be used to protect the inputs of a
circuit from overvoltage or other damaging conditions.
Isolating different sections of a circuit: SMT PCB buffers can be used to
isolate different sections of a circuit, which can be helpful in preventing
interference between different signals or subsystems.
Improving signal-to-noise ratio: SMT PCB buffers can be used to improve the
signal-to-noise ratio of a circuit, which can be important in applications
where a high level of precision is required.

For SMT Factory Setup, We Can Do for You:
1.  We Provide a Full SMT PCB Buffer Solution for You
2.  We Provide Core Technology With Our Equipment
3.  We Provide The Most Professional Tech Service
4.  We Have a Wealthy of Experience in SMT Factory Setup
5.  We Can Solve Any Question About SMT
