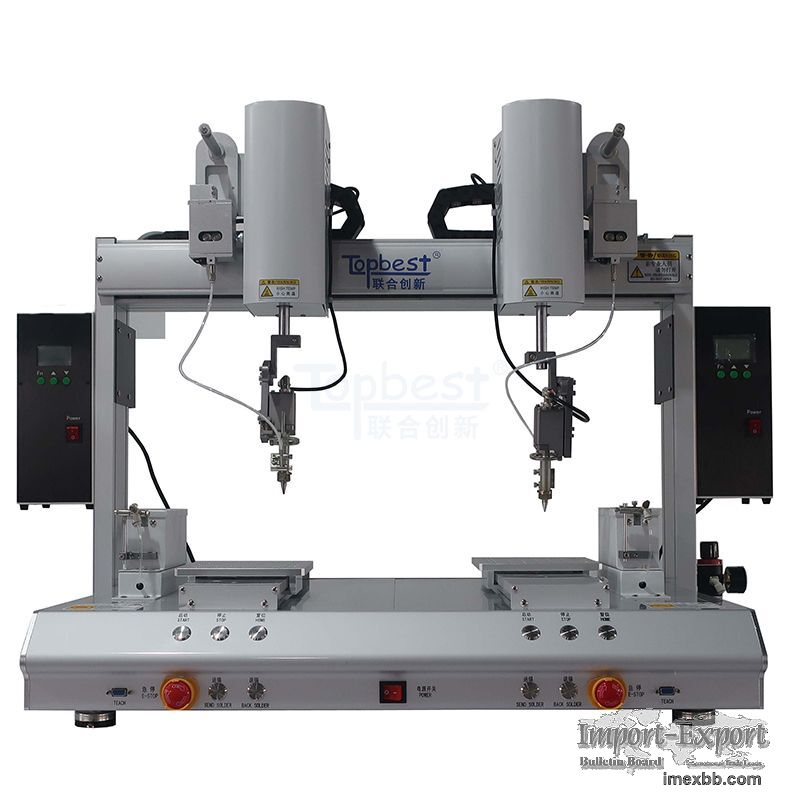

Soldering Robot TBS-T-6331RS

Soldering theory
Run mode: By application of multi-axis drive manipulator and software control
to achieve precise positioning of the soldering head.
Soldering manner: Thermostatically heating by solder iron under high-frequency
eddy current.
Working principle: Fix solder iron at the manipulator, move to the appointed
soldering coordinate, feed solder wire automatically at head of solder iron;
solder wire solders under high temperature and come into joint with the target.

Soldering Robot Functions
Spot soldering, drag soldering, automatic cleaning and multi-angle soldering
are available.
Position calibration, soldering dot array, parameter copy, automatic location
and skip are available.
Teaching programming enables customers to implement all types of hand soldering
upon their requirement.
Program calibration achieves workpiece integral coordinate position
compensation.
Program insertion and deletion make program revised easily and rapidly.
Intelligent control system achieves accurate delivery of solder, speed, time,
temperature and quantity of solder can be adjusted and controlled accurately

Advantages
Cost saving: High-efficiency operation is achieved by only one person.one
person's efficiency amounts to 3-5 persons' efficiency;
Good quality: Good soldering uniformity achieved high yield;
High efficiency: Multiple soldering tips work together at the same time to
achieve high efficiency;
More simple: One worker can operate 2-3 robots. what this worker does is only
pick and place fixture;
Customization: Topbest Automatic Soldering System Robot is strictly customized
based on customers' requirements on products and soldering production, in line
with requirements of production lines;
Good image: Intelligent automatic equipment presents a new appearance of
production line in factories, which helps enterprises establish a image of high
technology.
