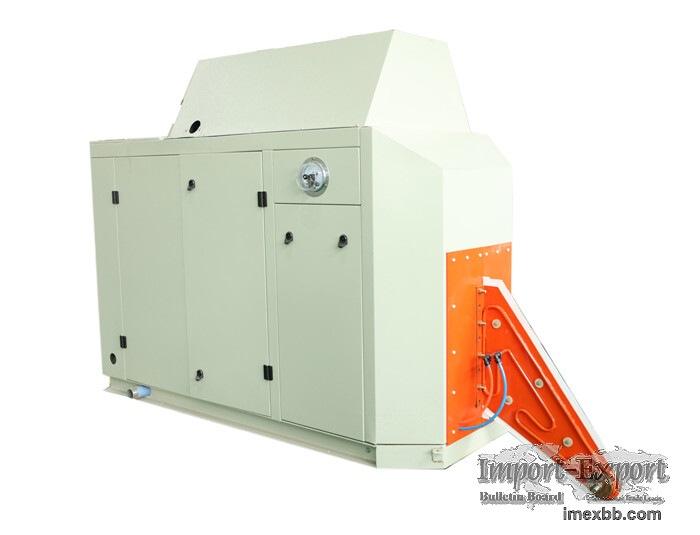

Solid state high frequency (HF) welder

Solid state high frequency (HF) welder
Solid state high frequency (HF) welder is mainly used for carbon steel welded
pipe induction welding . Using Germany IXYS brand MOSFET IXFN38N100Q2 38A/1000V
and fast recovery diode DSEI 2X61-12B 61A/1200V forming series resonance
inverter circuit, the solid state HF welder has a long life time with a low
failure rate.
Main design technical data of solid state HF welder :
Model GGP100-0.45-H GGP150-0.4-H GGP200-0.35-H GGP250-0.35-H GGP300-
0.35-H GGP400-0.3-H GGP500-0.3-H GGP600-0.3-H
Output Power 100 KW 150 KW 200 KW 250 KW 300 KW 400 KW 500 KW 600 KW
DC Power 120 KW 180 KW 240 KW 300 KW 360 KW 480 KW 600 KW 720 KW
Rated Voltage 450 V 450 V 450 V 450 V 450 V 450 V 450 V 450 V
Rated Current 270 A 400 A 530 A 670 A 800 A 1070 A 1330 A 1600 A
Frequency 400~450 KHZ 350~400 KHZ 300 ~350 KHZ 300 ~350 KHZ
300 ~350 KHZ 200 ~300 KHZ 200 ~300 KHZ 200 ~300 KHZ
Rectifier Cabinet Size (mm) 1500x900x2000 1500x900x2000 1500x900x2000
1800x900x2000 1800x900x2000 1800x900x2000 2000x1150x2000 2000x1150x2000
Inverter Cabinet Size (mm) 1750x700x1100 1750x700x1100 1750x700x1400
1800x700x1600 1800x700x1800 2000x700x1700 2000x700x1800 2000x700x2000
Operation Console Size (mm) 800x500x1100 800x500x1100 800x500x1100
800x500x1100 800x500x1100 800x500x1100 800x500x1100 800x500x1100
Efficiency ≥ 85 % ≥ 85 % ≥ 85 % ≥ 85 % ≥ 85 % ≥ 85 % ≥ 85 % ≥ 85 %

Features of solid state high frequency welder
1. Using MOSFET semiconductor , no life limit, which make sure the long life
time of welder.
2. Adopting SIEMENS PLC and HMI to connect the power supply and the production
line to achieve real-time monitoring of the whole production line
3. All kinds of protection functions. Including short circuit, open circuit,
over current, over voltage etc.
4. High speed welding but good welding quality. Energ-saving up to 25~30%
compared with vacuum tube welder.
