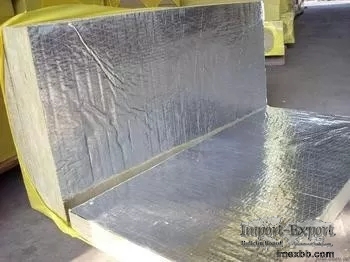

Sound Absorption Rockwool Insulation Board Laminated With Aluminum Foil

Sound Absorption Rockwool Insulation Board Laminated With Aluminum Foil



Quick Detail:



Rockwool board laminated with aluminum foil (FSK) is a ideal material for fire
proof, temperature control, energy conservation, condensation prevention and
personnel protection, sound absorption for both commercial and industrial
application





Description:



Rockwool (mineral) products is an economical light weight thermal insulation
material which is well recognized as one of the best material for thermal and
insulation purpose is manufactured from a mixture of natural rocks (basalt and
dolomite) melted at high temperature to form a molten matrix, which is then
passed through an air stream that cools the material and forms long fibrous
strands. These strands are bonded together to form slabs, blocks, blankets,
pipe covers and granulates (non-bonded). The material is chemically and
biologically inert and free from plant pathogens.





Applications:



Tungkin Rockwool Board Faced With Alumunim Foil (FSK) is to process temperature
control, energy conservation, condensation prevention and personnel protection
for the power generating, metallurgical, oil refining and chemical industries,
including plant and equipment such as exhaust flues, hot gas ducts, boilers,
heat exchangers, reactors, storage tanks, furnaces, ovens, autoclaves,
precipitators, stacks, air-conditioning ductwork, refrigeration equipment and
kilns. It is also use for building industry suitable for walls, roofs, elevator
well, flats or slightly curved surfaces for thermal, fire-resistance and sound
absorption.







Specifications:

Standard sizes:

Density

(Kg/m3)

40
,
50

60

80

100

120

150

200





Thickness

(mm)



38

25

25

25

25 ,

25

25

50

50

40 ,

40

40

40

50

50 ,

75

75

50

50

50 ,

50





100

100

75

75

, 75







150

150

100

100

100























Length

(mm)

1200mm,1000mm











Width

(mm)

600mm











Other sizes are available upon request.





Facing:

Aluminum Foil (FSK)





Main Technical data



Item

Unit

Data

Remark , s

Fiber diameter

μ

4~7



Shot content

%

<5



Service temperature

ºC

-269 ~ 850



Combustibility



non-combustible

DIN 4102

Moisture absorption

%

0.2

ASTM C-553-70

Water repellency

%

>98

JIS 9512

Chemical Properties/Biological Properties



Rockwool is neutral (PH 7) or slightly alkaline and meet the requirement of
standard ASTM C 795 JIS A 9504. It will normally not support the growth of
molds, fungi and bacteria
