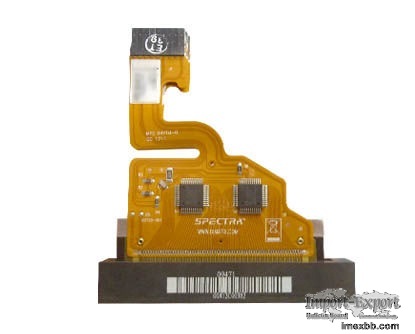

Spectra Galaxy JA 256 / 30 AAA Printhead

PRICE $ 1555

Description:
The Spectra Galaxy JA 256 / 30 AAA Printhead is a high performance, robust
and reliable jetting assembly designed for a broad range of wide format
printers at resolutions up to 900 dpi.
Four electrically independent piezoelectric slices, each with 64
addressable channels, are combined to provide a total of 256 nozzles. The
nozzles are arranged in a single line, at a native 0.010 inch distance
between nozzles.
The fluid interface and electrical connection are at the top of the jetting
assembly and several mounting configurations are possible.
This jetting assembly contains serial-to-parallel converters for selecting
which jets to fire; all jets can be fired simultaneously or individually.
To be used with: Dilli Neo Jupiter 1006 / Neo Marker 0301 / Neo Deluxe UVD-
2506(W) / Neo Deluxe UVD-3206 / Neo Plus UVP-1606(W) / Neo Plus UVP-
2506(W), HP Scitex FB6100, Inca EAGLE H / Columbia, NUR Tempo Q, VUTEk
PV200 / 600 / PV180 / 600, PrismaJet P22, Teckwin TeckUV S2400 / TeckUV
S3000, Inwear L3508G, Buskro BK700
Remarks: original (Brand new in box)

Minimum Order: 1 pieces
