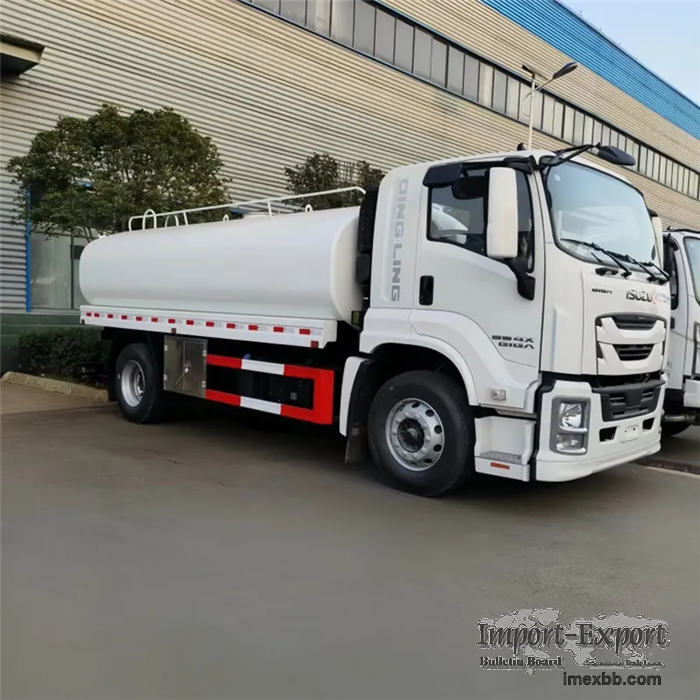

SPRINKLER TRUCK

With sprinkling water, dust removal, pesticide spraying, guardrail washing,
water transport, emergency fire and other functions.
It is driven by the engine to drive the gearbox, and the force extractor
installed on the gearbox drives the sprinkler pump, which generates the main
power and sprays the liquid inside the tank through the pipe network. Self-
priming height :≤7m, sprinkler width :≥20m, maximum range :≥28m;
Adjustable into column shape, range ≥28m; Can also be adjusted into fog, range
≥5m.
Water Tanker Truck can be sprayed before and after spraying, the front is
equipped with a duck-shaped nozzle or round head nozzle, the back is equipped
with a cylindrical sprinkler nozzle or showerhead nozzle, and the rear has a
working platform equipped with a high-pressure water cannon.
Tank production: blanking, automatic welding, head spinning forming, tank
rolling forming and other production processes.
Tank material: made of high quality carbon steel plate. 304 stainless steel can
also be used according to customer needs.
The tank volume has 4cbm\6cbm\8cbm\10cbm\12cbm\15cbm\20cbm and so on.
